In the rapidly evolving world of electronics, selecting the right DC-to-DC converter is crucial for optimizing system performance and efficiency. Whether you're an engineer designing power systems or a hobbyist working on a DIY project, understanding the intricacies of DC/DC converters can make a significant difference in your work. This comprehensive guide delves into the various types of converters, their applications, and the factors to consider when choosing one for your specific needs.
DC-to-DC converters are electronic devices that convert direct current (DC) from one voltage level to another. They are essential components in many electronic systems, allowing for the efficient use of power by matching voltage levels between different parts of a circuit. The two primary types of DC-to-DC converters are linear regulators and switching regulators, each with its advantages and disadvantages.
Linear regulators are simple and provide a clean output voltage with minimal noise, making them suitable for sensitive analog circuits. However, they are less efficient than switching regulators, especially when the difference between input and output voltage is large, as they dissipate excess voltage as heat.
Switching regulators, on the other hand, offer higher efficiency by rapidly switching the input voltage on and off and filtering the output. They are more complex but can handle a broader range of voltage conversions with less power loss, making them ideal for battery-powered devices and systems where efficiency is paramount.
Understanding the different types of DC-to-DC converters is essential for selecting the right one for your application. The main types include buck converters, boost converters, buck-boost converters, and isolated converters.
Buck converters reduce the input voltage to a lower output voltage. They are commonly used in applications where a lower voltage is required from a higher voltage source. For example, a step-down DC/DC converter might be used to power low-voltage components from a higher-voltage battery pack.
Boost converters increase the input voltage to a higher output voltage. They are used when the supplied voltage is lower than what is required by the load. This is common in battery-powered devices where the battery voltage declines over time.
Buck-boost converters can either increase or decrease the input voltage, providing flexibility in systems where the input voltage varies above and below the desired output voltage. They are useful in applications with fluctuating input voltages.
Isolated converters provide electrical isolation between the input and output, enhancing safety and reducing interference. These converters are essential in medical devices, industrial systems, and other applications where ground loops and electrical isolation are concerns. An isolated DC to DC converter ensures that the output is electrically separated from the input, providing protection against electrical faults.
Selecting the appropriate DC-to-DC converter involves considering several critical factors to ensure compatibility and optimal performance.
Determine the range of input voltages your system will encounter and the required output voltage. The converter must be able to handle the maximum and minimum input voltages while providing a stable output. Overlooking this can lead to inefficient operation or system failure.
Understand the current requirements of your load. The converter should supply sufficient current without exceeding its maximum ratings. An undersized converter may overheat or fail, while an oversized one can be inefficient and more expensive.
Efficiency is crucial, especially in battery-powered applications. Higher efficiency means less power is lost as heat, which can prolong battery life and reduce thermal management requirements. Comparing the efficiency ratings at different load conditions helps in selecting the best converter for your needs.
The physical size of the converter must fit within your system's design constraints. Compact converters are essential in space-limited applications like portable electronics. However, smaller size may come at the expense of thermal performance, so consider cooling requirements.
The switching frequency affects the size of the external components (like inductors and capacitors) and the overall efficiency. Higher frequencies allow for smaller components but may introduce more noise and require more careful design to minimize electromagnetic interference (EMI).
DC-to-DC converters are utilized across a broad spectrum of industries and applications, each with specific requirements and challenges.
In modern vehicles, DC-to-DC converters manage power distribution between different subsystems. Electric and hybrid vehicles rely heavily on converters to handle the varying voltage levels required by motors, batteries, and auxiliary systems. For instance, a DC to DC converter circuit ensures that sensitive electronic components receive a stable voltage despite fluctuations from the main battery.
Solar panels and wind turbines produce variable voltage outputs depending on environmental conditions. DC-to-DC converters regulate this power to charge batteries or feed into inverters for grid connection. High-efficiency converters maximize energy harvest and improve system reliability.
Telecom equipment requires highly reliable power supplies. DC-to-DC converters provide stable voltages to sensitive communication equipment, ensuring uninterrupted service. Isolation is often necessary to protect equipment from voltage spikes and ground loops.
Portable devices like smartphones, laptops, and tablets use DC-to-DC converters to manage battery power efficiently. These converters help extend battery life and reduce heat generation, which is crucial for user comfort and device longevity.
Designing or selecting a DC-to-DC converter involves several technical considerations beyond basic specifications.
Heat dissipation is a critical factor, as excessive temperatures can reduce efficiency and shorten the converter's lifespan. Proper thermal design includes heat sinks, thermal vias, and airflow considerations to maintain optimal operating temperatures.
Switching converters can generate electromagnetic interference, affecting other electronic components. Adequate filtering, shielding, and layout techniques are necessary to meet EMC regulations and prevent interference with other systems.
The control method (such as pulse-width modulation or hysteretic control) impacts the converter's performance, stability, and response to load changes. Understanding these topologies helps in selecting a converter that meets dynamic performance requirements.
In mission-critical applications, the reliability of the DC-to-DC converter is paramount. Choosing components with proven track records and considering factors like component derating and protection features enhances system reliability.
Examining real-world applications of DC-to-DC converters provides insight into practical considerations and solutions.

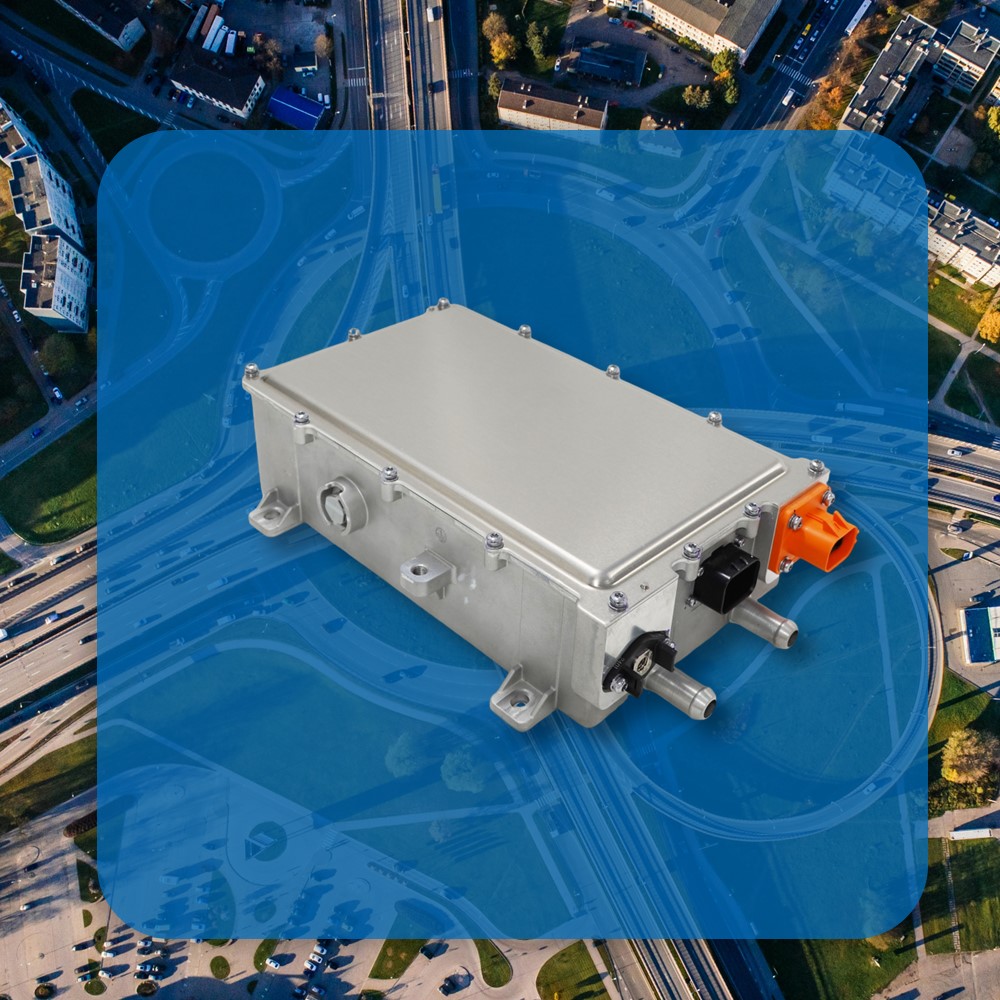

EVs use high-voltage batteries but require lower voltages for auxiliary systems. A robust DC-to-DC converter is necessary to step down the voltage while handling harsh automotive environments. Companies like Landworld offer advanced DC/DC converters designed for the unique demands of electric transportation.
Factories often utilize a central power supply with DC distribution. DC-to-DC converters provide the necessary voltage levels for various sensors, controllers, and actuators, ensuring reliable operation in electrically noisy environments.
Technological advancements continue to enhance the performance and capabilities of DC-to-DC converters.
Materials like gallium nitride (GaN) and silicon carbide (SiC) allow for higher efficiency and smaller converter sizes due to their superior electrical properties. These materials enable higher switching frequencies and better thermal performance.
Modern converters utilize digital control techniques to improve response times, stability, and adaptability. Digital control allows for precise adjustments and intelligent features like load sharing and fault protection.
Choosing the best DC-to-DC converter requires careful consideration of your application's specific needs, including voltage requirements, efficiency, size, and environmental conditions. Understanding the different types of converters and their functionalities empowers you to make informed decisions that enhance system performance and reliability. As technology advances, options for high-performance converters expand, offering solutions that meet the increasingly complex demands of modern electronic systems. By staying informed and selecting the right components, you ensure that your designs are efficient, robust, and future-proof.
For further exploration of advanced converters, consider reviewing the latest developments in high-performance DC-to-DC converter technology to find solutions tailored to your evolving needs.
