The heart of an electric vehicle’s auxiliary power system is the power converter. As manufacturers push for longer ranges and faster charging, the demand for a High efficiency 3kW DC/DC converter has never been greater. This specific power rating is the "sweet spot" for modern EVs, providing enough juice to power steering, lights, and infotainment systems while maintaining a compact form factor.
Achieving maximum efficiency in a 3kW DC/DC unit is not just about choosing the right components. It involves a holistic approach to thermal management, magnetic design, and switching topologies. For engineers and procurement officers, the goal is to find a balance between High power density and long-term reliability. In this guide, we will explore the technical breakthroughs and design strategies required to reach peak performance in for EV power conversion.
The choice of circuit topology dictates the ceiling of your converter's efficiency. For a 3kW DC/DC system, traditional hard-switching layouts are no longer sufficient. They generate too much heat and electromagnetic interference (EMI).
Most High efficiency converters in the 3kW range utilize either PSFB or LLC resonant topologies. The LLC resonant converter is particularly popular for EV applications because it allows for Zero Voltage Switching (ZVS). This means the power transistors turn on when the voltage across them is zero, virtually eliminating switching losses.
To push the 3kW DC/DC converter toward 96% or 97% efficiency, we have moved away from silicon-based MOSFETs. Instead, we use Silicon Carbide (SiC) or Gallium Nitride (GaN). These materials handle higher temperatures and switch faster. They allow us to reduce the size of passive components like inductors and capacitors, directly contributing to High power density. By reducing the physical size, we also shorten the current paths, further cutting down on resistive power waste.
When you cram 3,000 watts of power into a small box, heat becomes your biggest enemy. Efficiency isn't just about electrical conversion; it’s about how effectively we move waste heat away from the core components.
In the EV Modular world, liquid cooling is the gold standard. It allows the 3kW DC/DC converter to maintain a consistent operating temperature even under full load. By using a dedicated coolant loop, we can keep the internal components within their optimal efficiency range. This prevents "thermal derating," where the device has to lower its power output to stay cool.
Achieving High power density requires clever 3D packaging. We often stack PCB boards or use planar transformers instead of bulky wire-wound versions. Planar transformers use flat copper foils, which provide a larger surface area for cooling and lower "skin effect" losses at high frequencies. This leads to a High efficiency profile that stays flat across a wide range of load conditions, which is essential for the fluctuating power demands of an electric vehicle.
Electric vehicles operate in the most brutal environments imaginable. From salted winter roads to torrential rain, the 3kW DC/DC converter must remain functional. This is where Isolated Waterproof construction becomes a non-negotiable requirement for safety and efficiency.

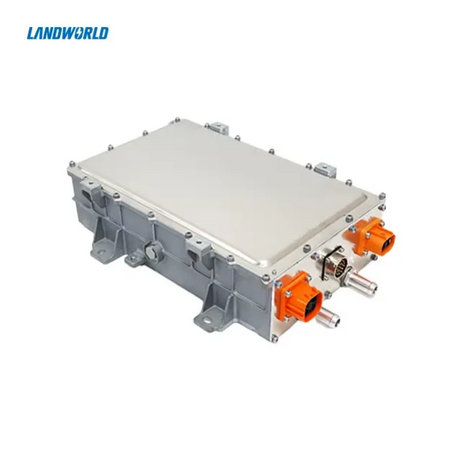

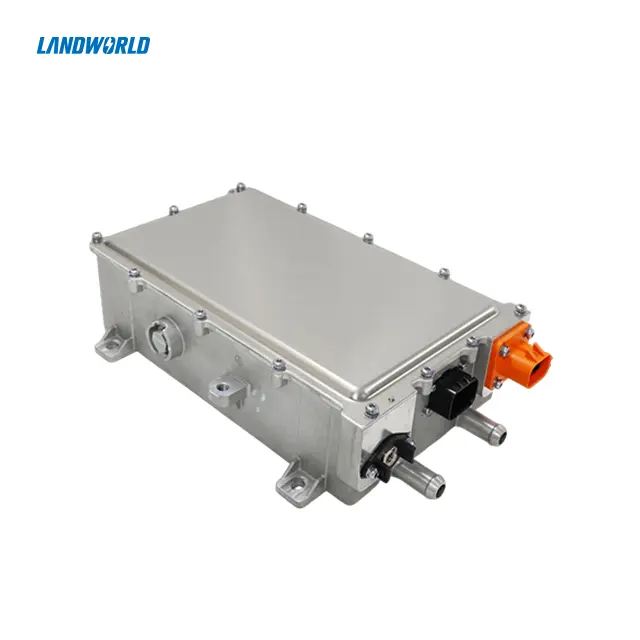

An IP67 waterproof rating means the unit can be submerged in one meter of water for 30 minutes without failing. For an EV Modular component, this protection starts at the housing level. We use die-cast aluminum enclosures with high-grade silicone gaskets. This prevents moisture from causing internal short circuits, which would instantly destroy a 3kW DC/DC unit.
An Isolated Waterproof design ensures that the high-voltage battery pack is completely separated from the low-voltage 12V system. This protects the vehicle's passengers and sensitive electronics from high-voltage spikes. Furthermore, isolation helps reduce common-mode noise, which improves the overall signal integrity of the vehicle's communication bus (CAN bus).
The transformers and inductors within a 3kW DC/DC converter are often where the most energy is lost. To achieve High efficiency, we must optimize every aspect of these magnetic components.
At high switching frequencies, the magnetic core itself heats up due to "hysteresis losses." Experts select specialized ferrite materials designed for the 100kHz to 500kHz range. This ensures that the 3kW DC/DC converter doesn't waste energy just by keeping the magnetic field moving.
As frequency increases, electricity tends to flow only on the outer surface of a wire—this is the skin effect. To combat this in a High power density converter, we use Litz wire. Litz wire consists of many thin, individually insulated strands twisted together. This increases the effective surface area, lowering resistance and ensuring the 3kW DC/DC stays cool and efficient under heavy current loads.
| Loss Type | Cause | Mitigation Strategy |
| Switching Loss | Transistor state changes | Use SiC/GaN and ZVS Topologies |
| Core Loss | Magnetic field friction | Optimized High-Frequency Ferrites |
| Copper Loss | Wire resistance | Litz Wire and Planar Transformers |
| Conduction Loss | Internal Resistance ($R_{DS(on)}$) | Parallel MOSFETs / Advanced SiC |
The modern 3kW DC/DC converter is no longer a purely analog device. It relies on high-speed Digital Signal Processors (DSPs) to manage the power flow in real-time.
Digital control allows the converter to change its "behavior" based on the load. For example, at light loads (when the car is just idling), the DSP can switch the 3kW DC/DC into a "burst mode" or "pulse-skipping mode." This prevents the switching losses from dominating the energy consumption when the car isn't using much power.
A digitally controlled EV Modular system can communicate its health back to the main vehicle computer. It monitors input voltage, output current, and internal temperature. If it detects a problem, it can adjust its parameters to prevent a total failure. This intelligence ensures the High efficiency stays consistent throughout the life of the vehicle.
One of the best parts of digital control is the ability to update the efficiency algorithms via software. If a new way to manage the switching timing is discovered, it can be pushed to the 3kW DC/DC converter without changing any hardware. This makes the EV Modular approach much more sustainable and cost-effective for fleet operators.
The trend in the automotive industry is moving toward "multi-in-one" power systems. A 3kW DC/DC converter is often integrated with the on-board charger (OBC) to create a single EV Modular power unit.
By integrating the 3kW DC/DC with other components, we eliminate heavy cables and connectors. Every inch of high-voltage cabling removed is a reduction in resistance and weight. This directly contributes to High power density. It also makes the manufacturing process simpler and reduces the number of points where an Isolated Waterproof seal could fail.
A modular approach allows for easier cooling. A single cold plate can cool both the OBC and the 3kW DC/DC converter. Because they share a housing, it is easier to maintain an IP67 waterproof environment for all critical power electronics. This synergy is how modern EVs manage to be so much more efficient than early prototypes.
To be used in a professional vehicle, a 3kW DC/DC converter must pass rigorous international tests. These standards ensure that "efficiency" doesn't come at the cost of safety or electromagnetic "pollution."
CISPR 25: This standard governs EMI. A High efficiency converter that creates too much radio noise will interfere with the car's GPS and radio.
ISO 26262: This is the functional safety standard. It ensures that if the 3kW DC/DC fails, it fails in a way that doesn't put the driver in danger.
IP67 / IP6K9K: These define the IP67 waterproof and high-pressure steam cleaning resistance required for under-the-hood components.
A Premium 3kW DC/DC unit will have all these certifications, providing peace of mind to the OEM (Original Equipment Manufacturer) and the end-user alike.
While it might seem like a small detail, the efficiency of the 3kW DC/DC converter has a direct impact on the vehicle's total cost of ownership.
If a converter is 90% efficient instead of 95%, the "lost" 5% is turned into heat. That is energy taken directly from the battery that isn't moving the car. Over the 10-year life of an EV, a High efficiency 3kW DC/DC can effectively add miles of range without adding a single battery cell.
A more efficient converter needs a smaller radiator and a smaller water pump. This reduces the weight of the vehicle and the cost of the cooling system components. By investing in a Premium 3kW DC/DC converter upfront, manufacturers save money on the rest of the vehicle's thermal management system.
Maximizing efficiency in a 3kW DC/DC converter is a multi-dimensional challenge. It requires the latest in SiC semiconductors, optimized magnetic design, and sophisticated digital control. By focusing on High power density and Isolated Waterproof protection, engineers can create power systems that are both reliable and incredibly efficient. As the EV Modular market continues to grow, the 3kW DC/DC will remain a cornerstone of electric mobility, turning battery power into the auxiliary energy that keeps our modern vehicles running.
Q1: Why is 3kW the standard for EV DC/DC converters?
Most passenger vehicles have auxiliary loads (steering, HVAC fans, lights) that total between 1.5kW and 2.5kW. A 3kW DC/DC provides enough overhead to handle peak loads while remaining small enough for High power density requirements.
Q2: Can I use an air-cooled 3kW DC/DC for my EV?
While possible, it is difficult to maintain High efficiency under high loads with air cooling alone. Liquid cooling is much more effective at maintaining the IP67 waterproof seal while removing heat from a compact 3kW DC/DC unit.
Q3: What does "Isolated" mean in a DC/DC converter?
It means there is no direct electrical path between the high-voltage input and the low-voltage output. An Isolated Waterproof design uses a transformer to transfer energy through a magnetic field, providing a safety barrier for the vehicle's passengers.
