In recent years, the global transportation sector has been undergoing a profound transformation driven by increasingly stringent environmental regulations, rising fuel costs, and the urgent need to reduce carbon emissions. While passenger vehicles were the earliest adopters of electrification technologies, heavy-duty vehicles—such as trucks, buses, and specialized industrial vehicles—are now becoming a critical focus of new energy development. These vehicles contribute a disproportionate share of total emissions due to their high energy consumption and long operating hours, making their electrification particularly impactful for achieving sustainability goals.
New energy heavy-duty vehicles, including battery electric vehicles (BEVs) and hybrid electric vehicles (HEVs), place significantly higher demands on powertrain systems compared to light-duty applications. They require higher power levels, improved energy efficiency, robust thermal management, and high system reliability under harsh operating conditions. As a result, traditional onboard power solutions originally designed for passenger vehicles are often insufficient to meet the performance, durability, and scalability requirements of heavy-duty platforms. This has driven the need for advanced power electronics technologies that can support higher power ratings while maintaining compact size, high efficiency, and compliance with automotive safety standards.
Against this background, this study focuses on a 22 kW On-Board Charger (OBC) integrated with a 3 kW DC/DC converter system, which represents a high-power, highly integrated solution for new energy heavy-duty vehicles. The OBC is responsible for converting external AC power into DC power to charge the high-voltage battery, while the DC/DC converter supplies stable low-voltage power to auxiliary systems such as lighting, control units, and onboard electronics. The integration of these two functions into a single system offers potential advantages in terms of reduced system complexity, lower weight, improved packaging efficiency, and enhanced overall energy utilization.
The primary objective of this study is to evaluate the suitability of the 22 kW OBC + 3 kW DC/DC system for heavy-duty vehicle applications. This includes analyzing its performance characteristics, efficiency, thermal behavior, and functional compatibility with the operational requirements of heavy-duty vehicles. By examining this system within the context of real-world application demands, the study aims to provide a technical basis for its adoption in next-generation new energy heavy-duty vehicles and to support further optimization of high-power onboard charging and power conversion solutions.
The 22kW OBC is designed to convert AC power from the grid into DC power suitable for charging EV batteries. In medium-duty and light-duty vehicles, a 22kW charger can deliver rapid charging cycles while maintaining high power density and thermal stability. When integrated with heavy-duty vehicles, this system faces the challenge of higher battery capacities, which may demand prolonged charging times. The three-phase capability of certain 22kW OBC variants allows for balanced power distribution across multiple phases, enhancing efficiency and reducing energy loss. Additionally, liquid-cooled configurations can help manage heat during extended operation, a critical factor for heavy-duty vehicles that operate in continuous or high-load conditions.

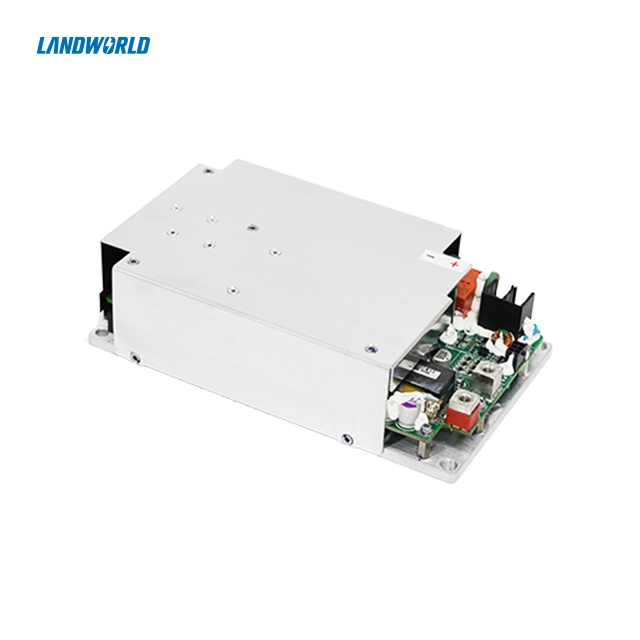

The 3kW DC/DC component converts high-voltage battery DC into low-voltage DC required for auxiliary systems such as lighting, HVAC, and vehicle control electronics. For heavy-duty vehicles, auxiliary loads are often substantial, including pumps, compressors, and control systems. The high efficiency of the DC/DC converter ensures minimal energy loss and stable voltage output, even under fluctuating load conditions. By providing a dedicated integrated power source for auxiliary systems, the 22kW OBC+3kW DC/DC system minimizes interference with battery charging, maintaining operational stability.
The combination of a 22kW OBC and 3kW DC/DC converter offers several benefits:
| Feature | Benefit |
|---|---|
| High Efficiency | Reduces energy loss during AC-to-DC and DC-to-DC conversion, improving overall vehicle range. |
| Compact Design | Allows integration into tight engine bays or battery compartments without major modifications. |
| Bidirectional Capability | Supports potential future V2G (vehicle-to-grid) applications. |
| Integrated Auxiliary Support | DC/DC converter powers auxiliary systems without compromising main battery charging. |
These features make the system appealing for medium-duty EVs and potentially for certain heavy-duty applications with moderate energy demands.
The 22kW OBC+3kW DC/DC system demonstrates clear operational benefits for vehicles, particularly when balancing charging speed, efficiency, and space constraints. Its primary advantages include high efficiency, fast charging, and compact and lightweight design, which are critical for maximizing fleet uptime.
High Efficiency: The system minimizes energy loss at both the OBC and DC/DC stages, ensuring that more energy from the grid translates directly into usable battery power. This efficiency is especially significant in heavy-duty vehicles, where operational costs and energy consumption are higher due to larger battery capacities. A liquid-cooled, high power density configuration further ensures that performance remains stable under heavy loads.
Faster Charging: While 22kW is moderate compared to high-power chargers used in commercial EV depots, it still offers significantly reduced charging times for auxiliary and main battery systems compared to lower-rated OBCs. This is particularly relevant for fleets that require multiple short recharges during operational cycles.
Compact and Lightweight: One of the advantages of the 22kW OBC+3kW DC/DC system is its small footprint. Heavy-duty vehicles often have limited space for additional electronic systems, and a compact integrated charger and converter reduce the need for extensive retrofitting.
Scalability: The 3kW DC/DC converter ensures that auxiliary systems—ranging from control electronics to HVAC—receive stable power, and its modular nature allows adaptation to different vehicle sizes and configurations.
Despite the advantages, several challenges limit the direct application of the 22kW OBC+3kW DC/DC system in heavy-duty EVs:
Power Requirements: Heavy-duty vehicles typically require charging capacities exceeding 50kW to effectively charge large battery packs within operational windows. The 22kW OBC may prolong downtime, affecting fleet efficiency.
Thermal Management: Extended operation at high power generates heat that must be managed carefully. Even with liquid-cooled systems, the thermal demands of heavy-duty vehicles can exceed design limits.
Durability and Reliability: Heavy-duty vehicles operate in harsh environments and over extended hours. Components must endure vibration, dust, moisture, and repeated thermal cycles without degradation.
Infrastructure Compatibility: Existing depot chargers and grid connections may not support simultaneous operation of multiple vehicles or higher voltage inputs needed for heavy-duty charging. Fleet operators may need infrastructure upgrades to accommodate these systems efficiently.
For heavy-duty EVs, operational efficiency is tied closely to the charging system’s capacity. Table 1 illustrates the typical charging times for varying onboard charger power ratings:
| Charger Power | Battery Capacity | Approx. 80% Charge Time |
|---|---|---|
| 22kW | 200 kWh | ~7 hours |
| 50kW | 200 kWh | ~3 hours |
| 100kW | 400 kWh | ~3.5 hours |
As the table indicates, a 22kW OBC is suitable for moderate-sized batteries but may not meet operational demands for vehicles with larger energy storage, where higher-power OBCs (50–100kW) would significantly reduce downtime. The high-efficiency design of the 22kW system still offers operational value but limits its use in continuous heavy-duty duty cycles.
Heavy-duty EVs often feature complex drivetrains, multiple auxiliary systems, and high-voltage networks exceeding 600V. The 22kW OBC+3kW DC/DC system can be integrated into these architectures but may require additional converters or parallel OBC modules to meet power demands.
Reliable integration requires seamless communication with vehicle management systems (VMS). The integrated OBC+DC/DC supports monitoring of voltage, current, and temperature, ensuring high-efficiency operation without overloading auxiliary systems or the traction battery.
Heavy-duty auxiliary loads may fluctuate considerably, and the 3kW DC/DC converter must handle variable currents while maintaining stable output voltage. In practice, scaling up or deploying liquid-cooled, high-efficiency variants ensures that auxiliary systems remain operational during peak loads.
The demand for high-efficiency, high-power charging solutions in heavy-duty EVs is growing as fleet electrification expands. Multi-OBC and DC/DC configurations could enable faster charging, improved operational flexibility, and sustainable energy use. The 22kW OBC+3kW DC/DC system may evolve through parallel integration or modular designs to meet larger capacity demands. Emerging bidirectional, liquid-cooled, and high-power density variants are likely to enhance applicability for commercial trucks, buses, and industrial vehicles.
The system demonstrates several notable advantages, including high efficiency, fast charging capability, and a compact overall design. High efficiency helps reduce energy losses during operation, thereby improving overall system performance and lowering operating costs. The fast charging feature significantly shortens charging time, enhancing user convenience and increasing vehicle availability. In addition, the compact design allows for easier integration into various vehicle platforms, optimizing space utilization and supporting flexible system layout.
Despite these advantages, the system still faces significant challenges when applied to heavy-duty vehicles. One major issue is the limitation in power output, which may be insufficient to meet the high energy demands of heavy-duty applications. Thermal management is another critical concern, as higher power levels generate substantial heat that can negatively affect system reliability, efficiency, and lifespan if not properly controlled. Furthermore, compatibility with existing heavy-duty vehicle architectures and infrastructure remains a challenge, potentially increasing implementation complexity and cost.
With continued advancements in technology, these challenges may be gradually addressed, making the system increasingly suitable for heavy-duty vehicles. Improvements in power electronics, energy storage technologies, and advanced cooling solutions are expected to enhance power capability and thermal performance. Additionally, further standardization and system optimization could improve compatibility with heavy-duty vehicle platforms. As a result, future developments may enable this system to become a practical and competitive solution for heavy-duty transportation applications.
Q1: Charging speed for heavy-duty vehicles
Current 22kW OBC systems may be insufficient for large battery capacities, requiring extended charging periods that could affect fleet operations.
Q2: Main challenges
Key hurdles include power output limitations, thermal management, long-term durability, and infrastructure compatibility with three-phase AC supply.
Q3: Scalability for commercial vehicles
Future integrated, high-efficiency DC/DC and OBC modules could support auxiliary loads and faster charging, enabling scalability across diverse heavy-duty EV platforms.
