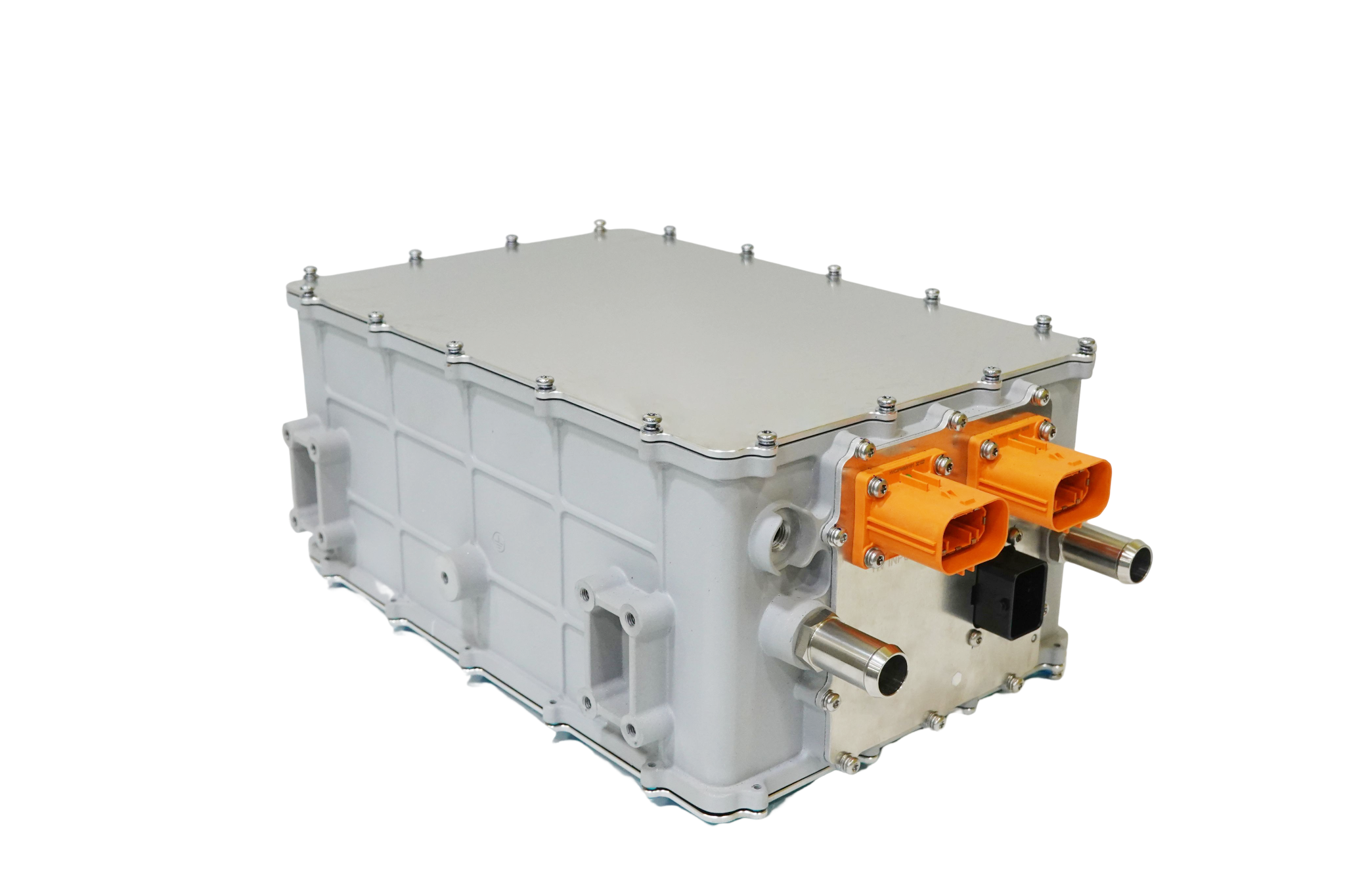

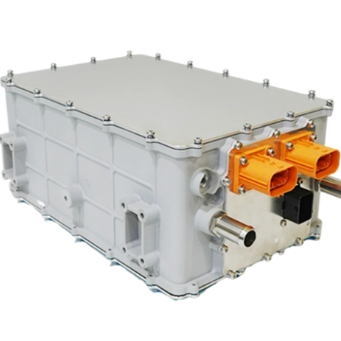

An 800V battery architecture can improve power delivery, but it also changes onboard charger requirements. Choosing the wrong charger can create costly integration challenges. An 800V on board charger must match the battery's operating voltage range, charging power, and electrical design. Not every component needs to operate at exactly 800V under all conditions. How can EV manufacturers select a charger that meets their vehicle's actual requirements? The answer involves more than voltage ratings alone. This guide explores voltage compatibility, power ratings, converter technology, and charging interfaces. It also explains how insulation, thermal management, and system integration affect the final selection. For a broader view of onboard power design for higher-voltage platforms, see Landworld's high-voltage EV power solutions.
An 800V battery does not operate at exactly 800V throughout every charging session. Its terminal voltage changes according to its state of charge, temperature, and charging current. Therefore, an 800V on board charger must support the battery's specified minimum and maximum charging voltages.
The battery management system (BMS) determines acceptable charging limits. The OBC must regulate its DC output within those limits. Engineers should check the charger's complete output voltage range, not simply its nominal rating.
They should also review transient voltage conditions and component voltage ratings. Switching devices can experience voltage spikes beyond the normal operating level. Adequate design margins help prevent electrical stress during demanding operating conditions.
A dedicated high-voltage OBC can simplify optimization for a specific battery architecture. Its converter stages can target the required voltage range, power level, and operating conditions. This approach may suit a vehicle platform designed exclusively around an 800V battery.
A dual-voltage OBC may offer greater flexibility across multiple vehicle platforms. However, broader voltage coverage can increase design complexity and validation requirements. Engineers should compare these trade-offs before choosing a charger.
Selection factor | What engineers should verify |
Battery voltage | Minimum, nominal, and maximum charging voltage |
OBC output | Supported DC voltage range and regulation accuracy |
Voltage margin | Transient tolerance and semiconductor ratings |
Platform flexibility | Dedicated or multiple battery voltage ranges |
The best choice is the charger that covers the complete operating range. A nominal voltage match alone does not establish compatibility.
An 800V architecture can reduce current for a given power level. However, it does not automatically increase the OBC's rated power. Actual charging performance depends on the charger, battery, and available AC supply.
Electrical power depends on voltage and current. At the same power level, a higher DC output voltage requires less current. Consider an illustrative 11 kW charger operating at two different DC voltages. At 400V, the output current is approximately 27.5A. At 800V, the same power requires approximately 13.75A.
These figures assume idealized operating points. They do not represent universal battery voltages or specific charger ratings. Actual current depends on the battery's instantaneous voltage and the charger's operating limits.
Lower current can reduce resistive losses in suitable conductors and connections. However, it does not guarantee shorter charging times. The battery's acceptance limits and the OBC's maximum power remain important.
Engineers must first determine which AC supplies the vehicle needs to support. Single-phase and three-phase connections have different voltage, current, and power capabilities. The selected OBC must operate correctly across the intended supply conditions.
For example, an 11 kW OBC cannot continuously deliver 11 kW if the available AC source provides less power. Conversion losses also mean battery-side output power is lower than input power. Engineers should therefore compare input limits, output ratings, and efficiency data together. For higher-voltage platforms requiring higher AC charging power, Landworld's 44 kW on-board charger provides a reference configuration for evaluating voltage range, charging power, and thermal requirements.
When comparing OBC specifications, check these factors:
AC input: Supported voltage, frequency, phase configuration, and current.
Rated output: Continuous DC power under specified operating conditions.
Charging limits: Battery voltage, maximum current, and BMS restrictions.
Efficiency: Conversion performance at different loads and voltages.
Thermal derating: Power reductions caused by temperature or cooling limits.
A higher-rated charger can shorten AC charging sessions when the vehicle and supply support its output. It cannot overcome every limitation in the charging system.
Higher battery voltage affects the voltage stress experienced by power electronics. It also changes the balance between switching losses, conduction losses, and component size. Engineers must evaluate the complete conversion circuit instead of selecting individual components in isolation.
Power semiconductors control electrical energy during conversion. Their voltage ratings must accommodate the circuit's maximum operating voltage and expected transient stress. A device rated too close to the actual stress level may lack sufficient design margin.
Silicon carbide (SiC) MOSFETs are common candidates for high-voltage, high-frequency power conversion. They can support efficient switching and help reduce converter size. However, their benefits depend on circuit design, switching frequency, gate driving, and thermal conditions.
Engineers should evaluate several related factors:
Blocking voltage: The device must withstand expected electrical stress.
Conduction losses: On-resistance affects heat generation during current flow.
Switching losses: Turn-on and turn-off behavior affect conversion efficiency.
Gate driving: Drive voltage and switching speed affect losses and reliability.
Electromagnetic interference: Switching transitions require careful circuit and layout design.
A 1200V-class semiconductor may suit certain 800V OBC designs. However, this rating is not a universal selection rule. The appropriate device depends on the converter topology and its electrical stress profile.
Most onboard chargers use two main conversion stages. The power factor correction (PFC) stage shapes AC input current and establishes an intermediate DC bus. The isolated DC-DC stage then regulates battery-side output power and provides galvanic isolation.
The DC-DC topology affects efficiency, control complexity, component selection, and operating range. Two common options are LLC resonant converters and dual-active-bridge converters. Each suits different electrical and integration requirements.
Design consideration | LLC resonant converter | Dual-active-bridge converter |
Main approach | Uses resonant energy transfer | Uses actively switched bridges |
Control priorities | Resonant operation and switching conditions | Bridge timing and power transfer control |
Potential advantage | High efficiency under suitable operating conditions | Flexible bidirectional power transfer |
Main design concern | Efficiency across a wide operating range | Control complexity and circulating current |
These are general tendencies, not guaranteed outcomes. Actual performance depends on the selected implementation and operating conditions.
Engineers should compare the converter's efficiency map, output regulation, and switching behavior. Transformer insulation and secondary-side components must also support the required battery voltage. A well-matched topology can improve performance without adding unnecessary complexity.
An OBC must work as part of the complete vehicle charging system. Battery voltage compatibility is only one requirement. Charging interfaces, control signals, electrical protection, and safety measures also need verification.
An OBC converts incoming AC power into regulated DC power for the traction battery. During typical DC fast charging, the external charger supplies controlled DC power through a separate charging path. The OBC's main AC-to-DC conversion stage is generally bypassed.
This distinction matters when evaluating an 800V platform. Compatibility with an 800V DC fast charger does not prove compatibility with an AC onboard charger. Each charging path has different power conversion and communication requirements.
Engineers should confirm:
The vehicle's supported AC charging voltage and phase configurations.
The OBC's battery-side voltage and current operating ranges.
Charging communication requirements and supported protocols.
Battery charging limits across different temperatures and charge levels.
Any additional voltage adaptation needed for particular charging scenarios.
An 800V vehicle may need extra compatibility measures for certain charging conditions. Those requirements depend on the vehicle's electrical architecture. They should be confirmed before the OBC design is finalized.
High-voltage systems require suitable insulation and fault protection. Engineers should evaluate creepage distances, clearance distances, dielectric withstand, and isolation monitoring. Applicable requirements depend on the vehicle design and relevant safety standards.
Protection functions should cover foreseeable operating faults. These may include overvoltage, overcurrent, short circuits, and excessive temperatures. Engineers must also confirm that fault detection triggers the correct response.
The OBC must communicate reliably with the BMS and vehicle controller. Depending on the design, CAN communication may support charging commands, status reporting, and diagnostics. Interlocks and charging-state coordination must also operate correctly.
System validation should cover both normal charging and fault conditions. Testing only the charger as an isolated component is insufficient. Engineers must verify its behavior within the complete vehicle architecture.
An 800V architecture can create opportunities for lower current and higher power density. However, the OBC still generates heat during power conversion. Cooling capacity, packaging, and component reliability therefore remain important selection criteria.
Power losses occur in semiconductors, transformers, inductors, and other circuit components. These losses become heat and can reduce charging efficiency. Poor thermal control may also trigger power derating or shorten component life.
Liquid cooling can support demanding thermal requirements in compact, high-power designs. Air cooling may suit applications with lower heat loads or simpler cooling arrangements. Neither option is automatically better for every vehicle platform.
Engineers should request efficiency and thermal data under defined conditions. They should examine performance across different output voltages and charging loads. High ambient temperatures and sustained charging can reveal limitations hidden by peak-efficiency figures.
Important checks include:
Efficiency maps: Compare conversion losses across representative operating points.
Cooling requirements: Verify coolant flow, inlet temperature, or airflow conditions.
Thermal derating: Identify when the OBC reduces output power.
Temperature limits: Review component temperatures during sustained operation.
Environmental testing: Confirm performance under the intended vehicle conditions.
Thermal design also affects component sizing and packaging. A compact OBC may offer valuable space savings, but only if it maintains acceptable temperatures.
The OBC must fit the vehicle's available installation space. Engineers should review dimensions, mounting points, connectors, cable routing, and service access. They should also assess vibration resistance and environmental protection requirements.
Integrating the OBC with a DC-DC converter may reduce packaging demands. However, integration can complicate thermal management, maintenance, and fault isolation. The decision should reflect the vehicle's architecture and production requirements.
Total cost should include more than the purchase price. Higher-voltage components, insulation, cooling hardware, and validation can affect the overall budget. Engineers should also consider reliability, manufacturing consistency, warranty exposure, and supplier support.
A lower-priced charger may create additional costs if it requires extensive redesign. A slightly more expensive unit may be preferable when it meets requirements more directly. The goal is to optimize the complete vehicle system rather than one component.
A structured evaluation helps manufacturers compare OBC candidates consistently. It also reduces the risk of overlooking critical requirements during procurement. Start by documenting the vehicle's electrical needs before reviewing supplier proposals.
Create a specification sheet covering mandatory requirements and preferred features. This gives engineering and purchasing teams a shared basis for evaluation.
Evaluation category | Questions to resolve |
Battery compatibility | Does the output range cover all required charging voltages? |
Charging power | Can the OBC sustain the required power from the available AC supply? |
Conversion performance | Are efficiency and power factor acceptable across operating conditions? |
Electrical safety | Are insulation, protection, and fault responses suitable? |
Vehicle integration | Are communication, packaging, and cooling requirements satisfied? |
Future flexibility | Is bidirectional charging or multi-platform support necessary? |
Treat mandatory requirements as pass-or-fail criteria. Compare optional features only after confirming basic compatibility. This prevents attractive efficiency claims or compact dimensions from distracting teams from essential requirements.
Supplier specifications provide a starting point, not final proof of suitability. The selected OBC must pass tests under representative vehicle conditions. Testing should cover the full required voltage range and expected charging loads.
A practical validation process includes:
1. Electrical testing: Verify voltage regulation, current limits, and charging performance.
2. Thermal testing: Measure temperatures during sustained charging and demanding conditions.
3. Fault testing: Check protection responses and recovery behavior.
4. Communication testing: Verify commands, diagnostics, and BMS coordination.
5. System testing: Confirm interoperability with the vehicle and charging equipment.
Review test reports, operating limits, and documented acceptance criteria before production approval. Any unresolved deviation should be assessed before design release. This approach helps ensure the charger performs reliably beyond laboratory demonstrations.
Selecting an 800V on board charger requires matching battery voltage, AC charging needs, power ratings, and vehicle architecture. Higher voltage alone cannot guarantee faster charging, better efficiency, or lower costs. Engineers should prioritize voltage compatibility, stable power delivery, thermal performance, safety, and system integration. Landworld provides onboard power solutions for higher-voltage EV platforms, with engineering support covering OBC selection, voltage compatibility, thermal requirements, and system integration. For vehicle programs requiring greater platform flexibility, explore our modular EV power solutions. Choosing an OBC based on verified operating requirements helps manufacturers balance charging performance, safety, and long-term value.
A: An 800V on board charger must support the battery's full charging voltage range, required power, and AC input conditions. Also verify efficiency, cooling, insulation, communication, and vehicle integration requirements.
A: An 800V on board charger does not automatically provide faster AC charging. Charging speed depends on its power rating, available AC supply, battery acceptance limits, and thermal performance.
A: Some designs support multiple voltage platforms, but compatibility depends on the specified output range and converter architecture. Confirm both battery voltage windows with the supplier before integration.
A: Silicon carbide semiconductors can support efficient high-voltage switching and help improve power density. Their actual benefits depend on converter topology, switching behavior, thermal management, and electrical design margins.
A: An 800V system may reduce current at the same power, but conversion losses still generate heat. Evaluate efficiency maps, cooling capacity, ambient conditions, and thermal derating before selecting an OBC.
A: Define voltage, power, AC input, safety, cooling, and communication requirements before requesting quotations. Compare verified operating performance and integration costs rather than choosing by rated power or purchase price alone.
