An EV may have a powerful battery, but reliable charging depends on more than battery capacity. The on-board charger must work seamlessly with the vehicle’s electrical and control systems. OBC integration connects the charger to the AC charging inlet, high-voltage battery, and power distribution system. The OBC converts incoming AC power into DC power the battery can accept. However, successful integration involves more than electrical connections. Engineers must also address communication, mechanical packaging, thermal management, and safety. This guide explains how to select a compatible OBC, design its interfaces, and coordinate vehicle controls. You will also learn how to validate charging performance, troubleshoot common issues, and prepare the system for production.
Before selecting hardware, engineers need a clear picture of the vehicle’s electrical architecture. Battery voltage, charging power, available AC supplies, and installation conditions all influence the decision. Defining these requirements early makes OBC integration easier and reduces expensive design changes later.
The battery pack determines the voltage and current limits the charger must support. Engineers should identify its nominal voltage, operating range, and maximum permitted charging current. The selected OBC must operate within these limits throughout the intended charging process.

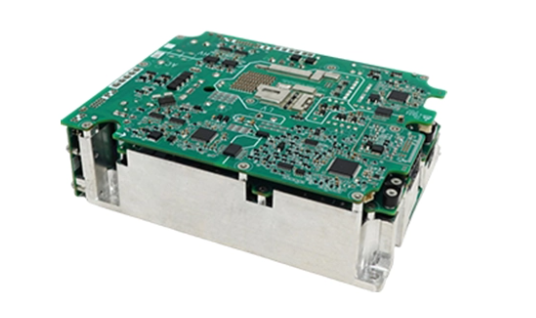

Charging power also affects the selection. A higher output rating can reduce charging time when the battery and AC supply support it. However, the battery management system (BMS) may limit charging power because of temperature, state of charge, or battery condition. Engineers must consider these limits instead of relying on the charger’s rated power alone. For vehicle programs evaluating an 11 kW charging configuration, Landworld's 11 kW on-board charger provides a reference for comparing voltage range, charging power, cooling, and interface requirements.
For an initial estimate, engineers can use this relationship:
Required AC input power ≈ Desired DC output power ÷ Conversion efficiency
For example, a charger delivering 11 kW at 95% efficiency requires approximately 11.58 kW of AC input power. This estimate excludes auxiliary loads and other system losses. The final design must also account for input current, supply limitations, and operating conditions.
The available charging infrastructure determines which AC input configurations are practical. Single-phase charging may suit lower-power applications or markets where three-phase supplies are less common. Three-phase charging can support higher input power when the grid connection and vehicle architecture permit it.
Engineers should verify the supported input voltage, frequency, phase configuration, and current range. They must also consider regional charging standards and the expected operating environment. A charger designed for one electrical supply may deliver reduced power or fail to operate correctly under another.
The OBC must fit the vehicle’s physical and electrical design. Engineers should review installation space, mounting points, mass limits, cable routes, and available cooling resources. They also need to consider vibration, moisture, dust, and expected temperature changes.
These requirements should become part of the initial specification. They help the engineering team compare suitable chargers before committing to a particular design. Early checks also reduce the risk of discovering packaging or cooling problems during vehicle testing.
Once the requirements are clear, engineers can design the power connections. The OBC sits between the AC charging inlet and the high-voltage battery. Its electrical interfaces must match the vehicle’s protection and distribution systems. A correct design also supports safe isolation and reliable fault handling.
The AC power path begins at the vehicle’s charging inlet. From there, power passes through the required protection and switching components before reaching the OBC. Each component must support the intended voltage, current, and operating conditions.
Engineers should check the following points:
Cable sizing: Select conductors based on current, temperature, routing, and installation conditions.
Connector ratings: Confirm compatibility with the charging inlet and charger input.
Protective earth: Provide the required grounding path and verify its electrical continuity.
Input protection: Coordinate protective devices according to the vehicle’s electrical design.
Electromagnetic compatibility: Reduce interference through appropriate filtering, shielding, and routing.
These checks help prevent excessive heating and electrical interference. They also reduce the risk of connector damage or unreliable charging.
The OBC converts incoming AC power into regulated DC power. Its output connects to the battery through the vehicle’s approved high-voltage distribution architecture. Engineers must verify output voltage, current limits, polarity, insulation, and connector compatibility.
The BMS must remain responsible for defining acceptable battery charging limits. The OBC should adjust its output according to the agreed control strategy. Engineers must also coordinate contactors and other switching devices. Pre-charge requirements depend on the surrounding circuit design and should be assessed individually.
Electrical protection must work across the entire charging system. Fuses, contactors, insulation monitoring, and fault detection may serve different roles. Their functions must be clearly defined within the vehicle architecture.
Engineers should document how the system responds to insulation faults, excessive current, and abnormal voltage. They must also verify how charging stops during a detected fault. A charger that operates correctly by itself may still create problems if its protection logic conflicts with the vehicle’s controls.
Electrical connections alone cannot complete OBC integration. The charger must exchange information with the battery management system and vehicle control unit (VCU). This communication determines when charging can begin, how power is regulated, and when charging must stop.
Engineers first need to confirm the communication interface specified by the charger and vehicle. CAN is commonly used in automotive control systems, but the actual interface depends on the design. Both sides must agree on message definitions, timing, signal scaling, and fault handling.
The BMS supplies information about battery conditions and permitted charging limits. Depending on the architecture, relevant signals may include battery voltage, temperature, state of charge, and allowable charging current. The OBC uses these signals to regulate its output within the approved operating range.
A communication interface is only useful when both devices interpret messages consistently. Engineers should verify signal definitions, message validity, timeout behavior, and diagnostic feedback. This prevents mismatched commands from disrupting the charging process.
A well-defined charging sequence helps every subsystem perform its intended role. The exact sequence varies by vehicle, but it generally includes several stages:
1. Connection detection: The vehicle detects the charging connection and checks the required interface conditions.
2. Charging authorization: The control system verifies that charging can proceed safely.
3. Power enablement: The relevant switching devices and charger enter their approved operating states.
4. Active charging: The OBC regulates output according to battery limits and available AC power.
5. Normal shutdown: The system reduces or stops power and completes the required isolation sequence.
The BMS protects the battery, while the VCU coordinates vehicle-level conditions. The OBC controls power conversion within its permitted limits. These responsibilities should be documented clearly to prevent conflicting commands.
The system must respond predictably when communication fails or operating conditions become unsafe. Engineers should define behavior for invalid messages, excessive temperatures, overvoltage, and overcurrent. They must also specify what happens when charging authorization disappears.
The charger may need to stop power conversion, report a diagnostic fault, or enter another defined safe state. The correct response depends on the fault and system design. Recovery rules should prevent unsafe automatic restarts.
During validation, engineers should record fault codes and relevant operating data. These records help distinguish communication problems from hardware failures. They also make troubleshooting easier during vehicle development and later service.
An OBC must operate reliably in its installed location, not just on a laboratory bench. Packaging affects cooling, wiring, vibration resistance, and service access. Engineers should evaluate these factors alongside electrical performance rather than treating them as final assembly details.
The mounting location should provide sufficient clearance and structural support. Engineers must consider vibration, road debris, moisture, and the expected temperature range. They should also ensure that technicians can reach connectors and mounting points during service.
High-voltage cables and low-voltage communication harnesses require careful routing. Engineers should maintain appropriate separation where needed and avoid sharp bends or excessive mechanical strain. Connectors must remain secure under vibration and repeated thermal changes.
A harness review should confirm cable lengths, connector orientation, retention methods, and strain relief. These details can prevent intermittent faults that appear only after vehicle assembly. They also help simplify manufacturing and maintenance.
Power conversion generates heat inside the OBC. If heat cannot escape efficiently, component temperatures may rise and trigger power derating or shutdown. Thermal design therefore affects charging performance and long-term reliability.
Air cooling may suit designs with manageable heat loads and adequate airflow. Liquid cooling may be appropriate when power density, packaging, or temperature requirements demand greater heat removal. Neither method is automatically better for every vehicle.
Engineers should evaluate heat generation, cooling capacity, ambient temperature, and sustained charging duration. Liquid-cooled designs also require checks for coolant flow, sealing, and material compatibility. Thermal testing should confirm acceptable temperatures under representative operating conditions.
Switching electronics can generate electromagnetic interference. Poor grounding or cable routing may disrupt communication and affect nearby electronic systems. Engineers should assess shielding, filtering, grounding, and cable separation during the design stage.
Isolation and environmental protection also require careful review. The installed OBC must meet the applicable electrical safety and environmental requirements. Testing should cover relevant insulation, moisture, vibration, and temperature conditions.
These checks should follow the vehicle’s actual operating environment. A design validated only under mild laboratory conditions may not perform equally well on the road. Engineers should therefore combine component-level tests with installed-system evaluation.
Before production, engineers must confirm that the charger works correctly within the complete EV system. Bench testing helps isolate component behavior, while vehicle testing reveals interface and installation problems. Both stages are essential because standalone performance cannot prove complete system compatibility.
Testing should cover the specified input conditions, output range, and charging loads. Engineers should measure DC output voltage, current, conversion efficiency, and power stability. They should also confirm that the charger follows BMS limits throughout a charging session.
A practical electrical validation checklist includes:
Verify AC input behavior across the specified operating range.
Measure DC output accuracy under different charging loads.
Confirm stable power regulation during charging.
Check charging performance under different battery conditions.
Verify responses to changing current and voltage limits.
Record unexpected interruptions, derating, and diagnostic messages.
Engineers should compare measured results against approved requirements. Any deviations need investigation before the design moves forward.
Thermal validation should reproduce representative charging loads and ambient conditions. Engineers should monitor critical components and cooling system performance. They should also check whether the charger reduces power or shuts down as designed.
EMC testing helps identify interference between the OBC and other vehicle electronics. Engineers should investigate unexpected communication errors or abnormal signal behavior. Applicable electrical safety tests should also form part of the validation plan.
Fault testing checks whether the system responds correctly when normal operation becomes impossible. Engineers should simulate defined communication failures, excessive temperatures, and electrical faults using approved test procedures. They must confirm that protective responses match the documented safety strategy.
The final stage involves charging the assembled vehicle. Engineers should verify the charging inlet, OBC, BMS, VCU, and high-voltage distribution system together. Testing should cover connection, authorization, active charging, interruption, and normal shutdown.
A successful vehicle test confirms that the interfaces work together under the tested conditions. It does not replace required environmental, safety, or compliance testing. Production release should depend on documented evidence against the complete validation plan.
Integration problems often appear when individually functional components operate together. A structured troubleshooting process helps engineers identify the source instead of replacing parts unnecessarily. The key is to compare expected behavior against measured signals and recorded fault data.
A vehicle may refuse to charge even when the OBC powers on correctly. Common causes include incorrect configuration, missing authorization, communication mismatches, or restrictive battery limits. Engineers should begin by checking the charging sequence and diagnostic records.
When charging power falls below expectations, compare the requested power against actual output. Then review the available AC supply, battery conditions, and BMS limits. Temperature, battery state of charge, and input current restrictions may explain the difference.
A step-by-step investigation can include:
1. Confirm the AC supply and charging connection.
2. Check communication status and charging authorization.
3. Compare requested and measured voltage, current, and power.
4. Review BMS limits and relevant fault records.
5. Repeat the test under controlled conditions.
This method helps isolate the problem before hardware changes are made.
Unexpected overheating may result from restricted airflow, insufficient coolant flow, poor thermal contact, or excessive operating loads. Engineers should compare measured temperatures with component limits and design expectations. They should also check whether the cooling system operates as intended.
Communication instability requires a different investigation. Engineers can inspect grounding, shielding, cable routing, and signal quality. They should also review connector seating, terminal crimping, and harness retention when faults appear intermittently.
Changes should be validated under the conditions that originally produced the failure. Otherwise, a temporary improvement may hide an unresolved problem. Clear test records help teams confirm the actual cause.
Production readiness requires more than a successful prototype. Engineers should maintain approved wiring diagrams, interface specifications, software configurations, and validation records. These documents help ensure that manufacturing teams build the intended design consistently.
A production checklist should include:
Design verification: Confirm compliance with electrical, thermal, and environmental requirements.
Communication validation: Verify approved messages, diagnostics, and charging sequences.
Assembly inspection: Check connectors, harness routing, mounting, and cooling connections.
End-of-line testing: Confirm essential functions and detect assembly defects.
Change management: Reassess compatibility when hardware or software changes affect interfaces.
Service preparation: Provide diagnostic procedures and troubleshooting documentation.
These controls reduce avoidable assembly errors and support consistent quality. They also make future repairs and design updates easier to manage.
Successful OBC integration starts with clear requirements, compatible electrical interfaces, and coordinated vehicle controls. Proper thermal management, safety measures, and staged testing help ensure reliable charging under real operating conditions. Landworld provides onboard charging solutions for EV applications, with engineering support covering product selection, electrical and thermal integration, communication, and validation requirements. Selecting a compatible OBC and validating the complete charging system early can reduce integration risks and support dependable production.
A: OBC integration starts with matching battery voltage and charging power. Engineers then connect the charging inlet, high-voltage battery, BMS, and vehicle controls before completing thermal and safety validation.
A: Key factors include battery voltage, AC input range, charging power, CAN communication, cooling capacity, and installation space. Engineers must verify compatibility across the complete vehicle system before production.
A: The BMS sends battery status and permitted charging limits through a defined communication interface, often CAN. The OBC adjusts its output accordingly and responds safely to faults or communication loss.
A: Thermal management prevents excessive component temperatures during charging. Engineers evaluate heat generation, ambient conditions, and cooling capacity to avoid unexpected power reduction, shutdowns, or reliability problems.
A: OBC integration testing includes electrical performance checks, communication validation, thermal evaluation, and fault simulation. Engineers then test the complete vehicle charging sequence to verify safe, reliable operation.
