An electric vehicle may stop charging even when its on-board charger appears functional. The cause could involve efficiency losses, overheating, or a hidden safety fault. An on-board charger (OBC) converts external AC power into DC power for battery charging. Automotive OBC testing checks more than basic charging functionality. It evaluates electrical performance, safety, thermal behavior, and responses to abnormal conditions. Understanding these tests helps engineers identify problems before production. This guide explains the typical testing sequence, the purpose of each test, and common reasons for failure. You will also learn how engineers evaluate results and determine whether an OBC is ready for vehicle integration.

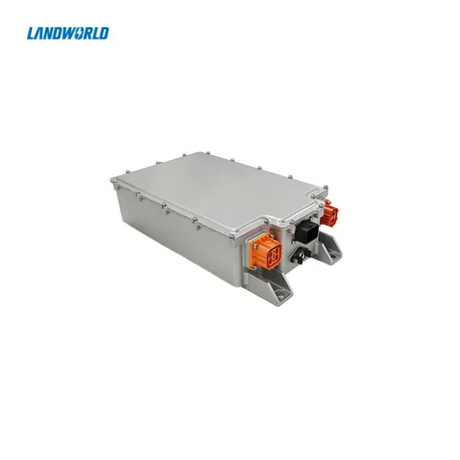

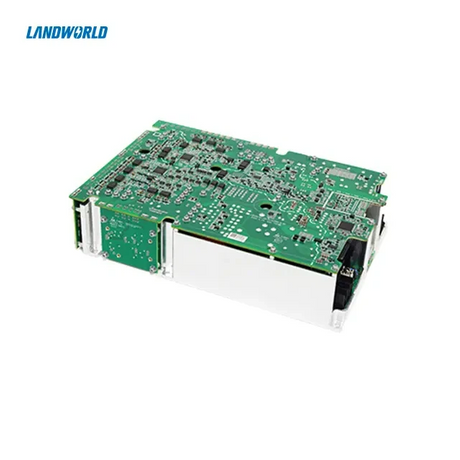

Electrical performance tests establish whether an OBC meets its specified operating requirements. Engineers first check the input and output ratings, phase configuration, and connection points. They then measure how the charger behaves across different loads. These measurements provide a baseline for later environmental and safety tests.
Engineers connect the OBC to a programmable AC source and a suitable DC load or battery simulator. The source reproduces the voltage and frequency conditions required by the test plan. The output equipment simulates the battery's charging demand. Measurement instruments record voltage, current, power, and operating status throughout each test.
The test sequence usually covers several operating points, not just maximum power. Engineers may test low, medium, and rated charging loads. They also examine startup, shutdown, and transitions between charging levels. The goal is to confirm stable output throughout the specified operating range.
During charging, the OBC must follow the battery's permitted charging profile. It may operate in constant-current and constant-voltage modes, depending on the charging strategy. Engineers check whether voltage and current remain within defined limits. Unexpected fluctuations can indicate control problems or unstable power conversion.
Engineers measure AC input power and DC output power to determine conversion efficiency. They compare the energy delivered to the battery against the energy drawn from the grid. The difference represents conversion losses, which may appear as heat inside the charger. For a product-level example, see how a 22 kW OBC contributes to charging efficiency.
They also evaluate power factor and input current harmonics. Power factor indicates how effectively the charger uses supplied AC power. Harmonic distortion reveals unwanted current components that can affect power quality. Results should be compared against the applicable specifications and test limits.
A charger that performs well at full load may behave differently at lighter loads. Engineers therefore measure performance across representative operating conditions. They also examine whether efficiency changes significantly as the input voltage or charging demand varies. These results help identify excessive losses and potential power quality problems.
A laboratory must reproduce conditions the charger may encounter during normal operation. A fixed AC supply and a simple load cannot represent every charging scenario. Engineers therefore combine programmable power sources, battery simulators, electronic loads, and communication interfaces. This setup allows repeatable testing without requiring a complete vehicle for every experiment.
A programmable AC source can reproduce changes in input voltage and frequency. Engineers may also introduce voltage dips, interruptions, or other disturbances. Each condition tests whether the OBC maintains safe behavior and follows its control logic. The test plan defines the disturbance levels and expected response.
Charging communication requires separate attention. The charging system must correctly interpret relevant signals from the charging equipment and vehicle systems. Depending on the vehicle architecture, tests may include control pilot and proximity pilot signals as well as communication between the OBC and vehicle controllers. Engineers verify whether the charger starts, pauses, resumes, or stops as expected. Invalid connection states and communication errors should trigger the specified response.
A failed communication test does not always indicate a power-stage defect. The cause may involve signal timing, control logic, wiring, or interface configuration. Engineers should record communication logs alongside electrical measurements. This makes it easier to identify the actual failure mechanism.
A battery simulator reproduces different battery voltage and current demands. Engineers can change these demands while the OBC operates. They may also test charging termination and transitions between power levels. These checks reveal whether the charger responds correctly to changing battery acceptance limits.
Fault testing examines how the OBC reacts when conditions move outside normal limits. Depending on the design, engineers may simulate output short circuits, abnormal feedback, or insulation faults. They confirm that protection functions activate as specified. They also check whether the charger shuts down safely and records the correct fault information.
Testing must use controlled procedures and suitable protective equipment. Engineers should never introduce high-voltage faults without an approved test setup. After a fault clears, they examine whether the OBC recovers correctly. Some faults may require a reset before charging can resume. Others should keep the charger disabled until the underlying issue is resolved.
An OBC can meet its power targets and still fail safety or durability requirements. Electrical protection, electromagnetic compatibility, and environmental resistance must be evaluated separately. The applicable requirements depend on the vehicle design, target market, and certification plan. Engineers should define these requirements before testing begins.
Electrical safety testing checks whether hazardous voltage can reach accessible parts. Engineers may evaluate insulation resistance and dielectric withstand using approved procedures. They also assess protective grounding and leakage current where applicable. Each test must follow the requirements for the specific OBC design.
Electromagnetic compatibility testing examines both emissions and immunity. Conducted and radiated emissions tests measure interference generated by the charger. Immunity tests assess its response to external disturbances. These may include electrostatic discharge, electrical transients, or other specified interference conditions.
A charger must continue operating safely under the required immunity tests. It may need to maintain normal performance or enter a defined safe state. Acceptance criteria depend on the test method and applicable requirements. Insulation and dielectric tests also require special care. Incorrect test settings can damage sensitive electronic components. Engineers should follow approved procedures rather than apply one universal test voltage.
Automotive OBC testing must reflect the environment around the installed charger. Engineers operate the unit at specified low, ambient, and high temperatures. They monitor component temperatures, output stability, and any power derating. Thermal protection should activate according to the defined limits.
Environmental testing also examines mechanical and moisture-related risks. Vibration and mechanical shock tests evaluate the effects of vehicle movement. Humidity exposure can reveal weaknesses in insulation, seals, and electrical connections. Temperature cycling may expose material stress or connection problems. The test profile should reflect the intended installation environment.
After exposure, engineers repeat selected electrical tests. They compare new measurements against the original baseline. A charger may still operate while showing reduced efficiency or unstable output. Such changes can reveal damage that a basic startup check would miss. Passing one room-temperature test cannot establish long-term reliability.
Test results only become useful when engineers compare them against clear acceptance criteria. Each measurement should link to a specific requirement and operating condition. Engineers must distinguish repeatable failures from isolated measurement errors. This process helps teams identify the root cause and avoid unnecessary design changes.
Engineers begin by reviewing input power, output voltage, current, efficiency, and temperature. They compare these results against expected values at each operating point. Oscilloscopes can reveal abnormal switching waveforms, excessive ripple, or unstable control behavior. Thermal measurements help locate components that operate beyond their intended limits.
Different symptoms can have several possible causes. For example, an unexpected charging interruption may involve communication, protection logic, or the power stage. Excessive temperature may result from high losses, poor cooling, or an unsuitable operating condition. Engineers should not assume one symptom proves a single cause.
A useful diagnostic process combines electrical measurements with event logs and test conditions. Engineers first identify when the failure occurs and whether it can be reproduced. They then isolate variables and repeat the test under controlled conditions. This approach helps distinguish a genuine design issue from an incorrect setup or measurement.
Every failed test should produce a traceable record. Engineers need enough information to reproduce the original conditions. A useful report includes the following details:
Test configuration, equipment identification, and calibration status.
Hardware revision, firmware version, and relevant software settings.
Input conditions, output demand, and ambient temperature.
Measured values, oscilloscope waveforms, and fault codes.
Failure time, observed behavior, and applicable acceptance criteria.
Corrective actions, retest results, and final disposition.
After identifying the likely root cause, engineers apply a corrective action. They then repeat the failed test under the original conditions. Related regression tests check whether the change created new problems. A fix should not be considered successful until the required evidence supports it. Unresolved safety-critical failures must remain open until properly addressed.
Production readiness requires more than passing a laboratory performance test. Engineers must establish that the charger meets its requirements and works correctly inside the intended vehicle. They also need evidence of manufacturing consistency. The release decision should follow documented acceptance criteria, not subjective confidence.
Laboratory validation provides controlled measurements of electrical performance and protective behavior. Engineers can vary input conditions, battery demands, and environmental factors systematically. This helps them understand the charger's operating limits before vehicle integration.
Vehicle-level testing examines interactions that laboratory tests may not fully reproduce. The OBC must work correctly alongside the battery management system, charging inlet, vehicle networks, and thermal management system. Engineers verify charging compatibility, fault coordination, and communication behavior. They also check whether nearby vehicle systems affect charging performance.
The final validation plan should reflect the intended vehicle architecture and target market. Applicable safety, charging, and EMC requirements must be identified early. Relevant standards may include IEC 61851-1 and ISO 6469-3, depending on the test scope. Engineers must confirm the correct editions, applicability, and required procedures. Referencing a standard alone does not demonstrate compliance.
Qualification tests can be extensive, so manufacturers do not necessarily repeat every test on every unit. Instead, they define production checks according to risk, specifications, and manufacturing controls. End-of-line testing may verify basic functionality, electrical connections, output behavior, and fault detection. The exact checks depend on the product and production process.
Design changes can require additional validation. Changes to hardware, firmware, components, or cooling arrangements may affect earlier results. Engineers should assess each change and repeat relevant tests. They must also check whether previously validated functions remain unaffected.
A practical release checklist includes:
Required electrical performance tests meet their acceptance limits.
Safety and EMC testing has the required documented evidence.
Environmental tests address the intended operating conditions.
Vehicle integration tests verify system-level behavior.
Identified failures have corrective actions and verified retest results.
Production checks and revision traceability are established.
The OBC should advance only when required evidence is complete. Any unresolved issue must have a documented disposition. This process helps prevent laboratory success from being mistaken for production readiness.
Automotive OBC testing verifies electrical performance, safety, thermal stability, and environmental durability. Tests must reflect rated specifications, realistic disturbances, and vehicle integration needs. Production should proceed only after requirements are verified and critical failures resolved. Landworld provides on-board charger solutions for EV applications, with engineering support for product selection, integration, and validation requirements. For platforms with higher-voltage architectures, explore our high-voltage EV power solutions.
A: Automotive OBC testing evaluates electrical performance, conversion efficiency, safety, thermal behavior, and environmental durability. Engineers also simulate charging conditions and faults to verify reliable operation before vehicle integration.
A: Engineers use programmable AC sources, battery simulators, electronic loads, and measurement instruments. They check input and output performance, charging communication, protection responses, and operation under different loads and temperatures.
A: Automotive OBC testing helps identify insulation problems, excessive temperatures, electrical faults, and electromagnetic interference. It verifies whether protective functions respond correctly and helps reduce risks before production.
A: Engineers measure conversion efficiency, output voltage, charging current, power factor, and harmonic distortion. They repeat measurements across different loads and input conditions to identify performance variations.
A: Engineers compare measurements against defined acceptance criteria and examine waveforms, temperatures, and fault logs. They reproduce failures under controlled conditions, investigate root causes, and verify corrective actions through retesting.
