The automotive and industrial sectors are undergoing a massive shift toward electrification. As systems become smaller and more powerful, managing heat has become the primary hurdle for engineers. A 3kW DC/DC converter is a powerhouse component, but packing that much energy into a compact frame creates intense thermal stress. If we don't manage this heat, the system's lifespan drops, and efficiency suffers.
In high-power density environments, traditional cooling methods often fall short. We need advanced strategies to maintain High efficiency while preventing thermal runaway. This guide explores how to tackle these challenges. We will look at material selection, structural design, and the integration of Isolated Waterproof technologies. Whether you are designing for an EV Modular platform or a rugged industrial robot, mastering heat management is the key to a reliable 3kW DC/DC system.
When we talk about High power density, we are describing the art of cramming more "work" into less space. In a 3kW DC/DC converter, this density means the heat-generating components—like MOSFETs and transformers—are positioned very close together. There is simply less surface area for the heat to escape.
Thermal resistance is the "friction" that heat faces as it moves from the silicon chip to the outside world. In a High efficiency system, we aim to keep this resistance as low as possible. If heat stays trapped inside the EV Modular unit, the internal temperature can exceed $150^\circ C$, leading to immediate component failure. Designers must focus on the entire thermal path, ensuring that every interface is optimized for heat transfer.
Even at High efficiency levels, say 96%, a 3kW DC/DC system still loses 4% of its energy as heat. That is 120 Watts of pure heat concentrated in a tiny box. This is equivalent to several old-fashioned lightbulbs burning inside a sealed enclosure. Without a clear exit strategy, this energy will cook the delicate control electronics nearby.
Choosing the right cooling method is the most significant decision in managing a 3kW DC/DC system. The choice often depends on the application, such as whether it is for EV use or a stationary industrial power supply.

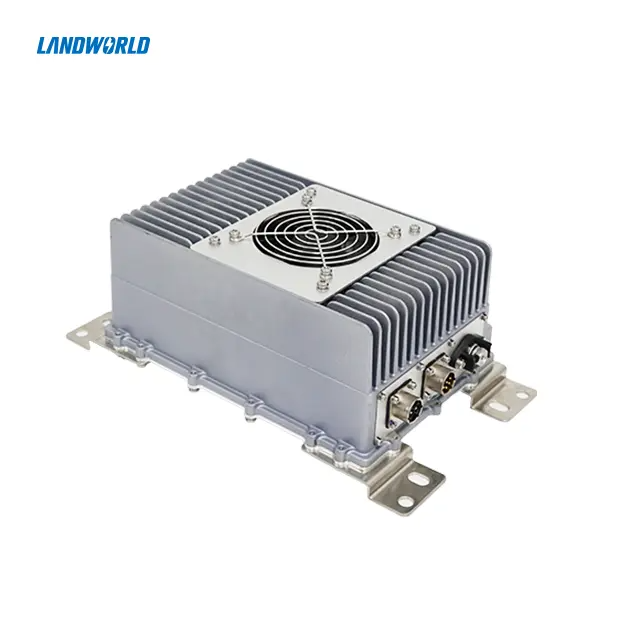

Air cooling is simple and cost-effective. However, for a High power density 3kW DC/DC, passive air cooling is rarely enough. We often need forced air (fans) and massive heat sinks. The design of these fins is critical. They must provide maximum surface area without blocking the airflow. In rugged environments, however, fans are a point of failure, which leads many engineers to look toward liquid-cooled solutions.

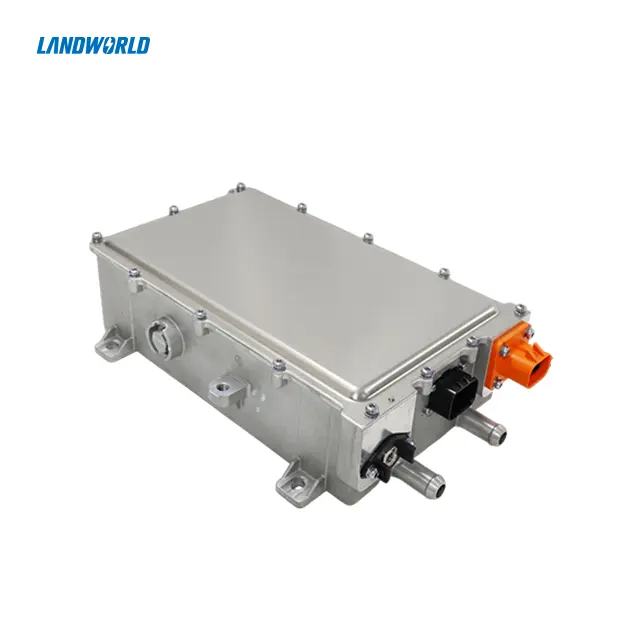

In the world of electric vehicles, liquid cooling is the gold standard. By pumping coolant through a baseplate, we can move heat away from the 3kW DC/DC much faster than air ever could. This allows for a much smaller footprint, contributing to higher power density. It also helps in maintaining an IP67 waterproof rating, as the unit can be completely sealed from the outside environment while the heat is carried away by the internal liquid loop.
| Cooling Method | Heat Dissipation Rate | Complexity | Best Application |
| Natural Convection | Low | Very Low | Low-power electronics |
| Forced Air | Medium | Medium | Servers & Desktop Power |
| Liquid Cooling | Very High | High | for EV & High-density modules |
| Phase Change | Extreme | Very High | Aerospace & Specialized High-power |
The best way to manage heat is to not generate it in the first place. This is where High efficiency semiconductor materials like Gallium Nitride (GaN) and Silicon Carbide (SiC) come into play.
Traditional silicon MOSFETs have higher switching losses. When used in a 3kW DC/DC, they get hot very quickly. SiC and GaN components can switch at much higher frequencies with lower resistance. This means they waste less energy as heat. By using these materials, we can keep the 3kW DC/DC footprint small while maintaining a cool operating temperature.
Transformers and inductors are often the hottest parts of a 3kW DC/DC converter. To manage this, we use high-permeability core materials and "planar" transformers. Planar designs use flat copper foils instead of round wire. This increases the surface area for cooling and reduces the "skin effect" at high frequencies. It is a vital strategy for anyone building an EV Modular system that needs to be both powerful and thin.
For a 3kW DC/DC used in outdoor or automotive settings, the enclosure must do two things: keep water out and let heat out. This is a difficult balance.
An IP67 waterproof rating means the device can be submerged in water. This requires a tightly sealed aluminum housing. Aluminum is great because it is lightweight and has excellent thermal conductivity. We often use the housing itself as a giant heat sink. By mounting the hottest components directly to the inner wall of the Isolated Waterproof case, the heat can pass through the metal and dissipate into the surrounding air or chassis.
Even perfectly flat metal surfaces have microscopic air gaps. Air is a terrible conductor of heat. We use TIMs—like thermal pads or grease—to fill these gaps. In a High power density 3kW DC/DC, the quality of the TIM is paramount. A cheap pad can act like a blanket, trapping heat inside and causing the system to throttle its power output.
The "guts" of the 3kW DC/DC—the Printed Circuit Board (PCB)—is more than just a place to solder parts. It is a critical part of the thermal management system.
Standard PCBs use thin copper layers. For a 3kW DC/DC, we use "heavy copper" (3oz or more). This allows the traces to carry high current without heating up. Additionally, we use thermal vias—tiny holes filled with copper—to "tunnel" heat from the top layer of the board to the bottom layer, where it can be sucked away by a heat sink.
Heat from the power stage can interfere with the sensitive control logic. If the controller gets too hot, its timing may drift, reducing the overall High efficiency of the system. We solve this by physically separating the power components from the control chips. Sometimes, we even use separate PCB layers or vertical daughterboards to keep the "brains" of the EV Modular unit away from the "brawn."
No matter how well we design the cooling system, unexpected things happen. A cooling fan might fail, or the ambient temperature might spike. A smart 3kW DC/DC must be able to protect itself.
We place thermistors at the most critical points: the main MOSFETs and the transformer core. These sensors provide Real-time data to the onboard microcontroller. If the temperature approaches a dangerous limit, the system can enter a "derating" mode. This means it temporarily reduces the output power from 3kW to, say, 2kW to allow the system to cool down without shutting off completely.
Modern 3kW DC/DC units use digital control rather than old-analog circuits. This allows for more sophisticated thermal management. The system can predict a heat spike before it happens by monitoring current and voltage trends. It can then adjust the switching frequency to optimize for lower heat generation during high-stress periods.
In high-voltage environments, such as a 400V or 800V EV battery system, isolation is a safety requirement. But isolation barriers—like optocouplers or magnetic isolators—also need to be thermally managed.
An Isolated Waterproof 3kW DC/DC uses a physical gap or a non-conductive barrier to separate high and low voltages. These barriers can act as thermal bottlenecks. Engineers must design the layout so that heat doesn't build up on one side of the barrier while the other side stays cool. This uneven heating can cause mechanical stress on the PCB, leading to cracks in the solder joints over time.
Using ceramic-based substrates instead of standard FR4 fiberglass can greatly improve heat flow across isolated sections. Ceramics are excellent electrical insulators but surprisingly good thermal conductors. This makes them perfect for a High power density 3kW DC/DC that needs to be safe and cool.
An IP67 waterproof seal must be durable enough to withstand thermal expansion. As the 3kW DC/DC heats up and cools down, the air inside the box expands and contracts. If the seals aren't designed for this "breathing," they will eventually fail, allowing moisture to enter. High-end units often include a pressure-equalization vent—a membrane that lets air pass but blocks water—to solve this issue.
The way we cool a 3kW DC/DC has changed drastically over the last decade. Understanding this evolution helps procurement and design teams choose the best technology for their future projects.
| Era | Primary Material | Cooling Style | Power Density |
| 2015 | Silicon (Si) | Large Fan + Heavy Fins | Low ($<1 W/cm^3$) |
| 2020 | SiC / Hybrid | Advanced Air / Basic Liquid | Medium ($2-4 W/cm^3$) |
| 2026 | GaN / SiC | Integrated Liquid / Cold Plate | High ($>8 W/cm^3$) |
By moving toward High efficiency wide-bandgap materials and liquid cooling, we have increased power density by nearly 800% in ten years. This is what allows modern EV Modular platforms to be so sleek and high-performing.
Managing thermal challenges in a 3kW DC/DC system is a multidimensional puzzle. It requires a perfect blend of material science, mechanical engineering, and digital control. By prioritizing High efficiency components like SiC and GaN, and utilizing Isolated Waterproof enclosure designs, we can build power systems that are both incredibly small and remarkably reliable. As we push for even higher densities, the strategies of today—liquid cooling, thermal vias, and intelligent derating—will become the mandatory standards for the electrified world of tomorrow.
Q1: Why is liquid cooling better for a 3kW DC/DC in an EV?
Liquid is much denser than air. It can absorb and carry away heat much more efficiently. This allows the 3kW DC/DC to be much smaller, which is essential for EV Modular designs where space is at a premium.
Q2: What happens if a 3kW DC/DC gets too hot?
First, the unit will likely "derate" or lower its power output. If the heat continues to rise, the internal components (specifically the MOSFETs) will fail, and the unit will shut down to prevent a fire. Using a High-quality thermal interface material helps prevent this.
Q3: Can an IP67 waterproof unit be air-cooled?
Yes, but it is harder. Since the unit is sealed, the heat must move to the outer shell via conduction and then be moved away by air on the outside. This usually requires a very large aluminum case with many fins.
