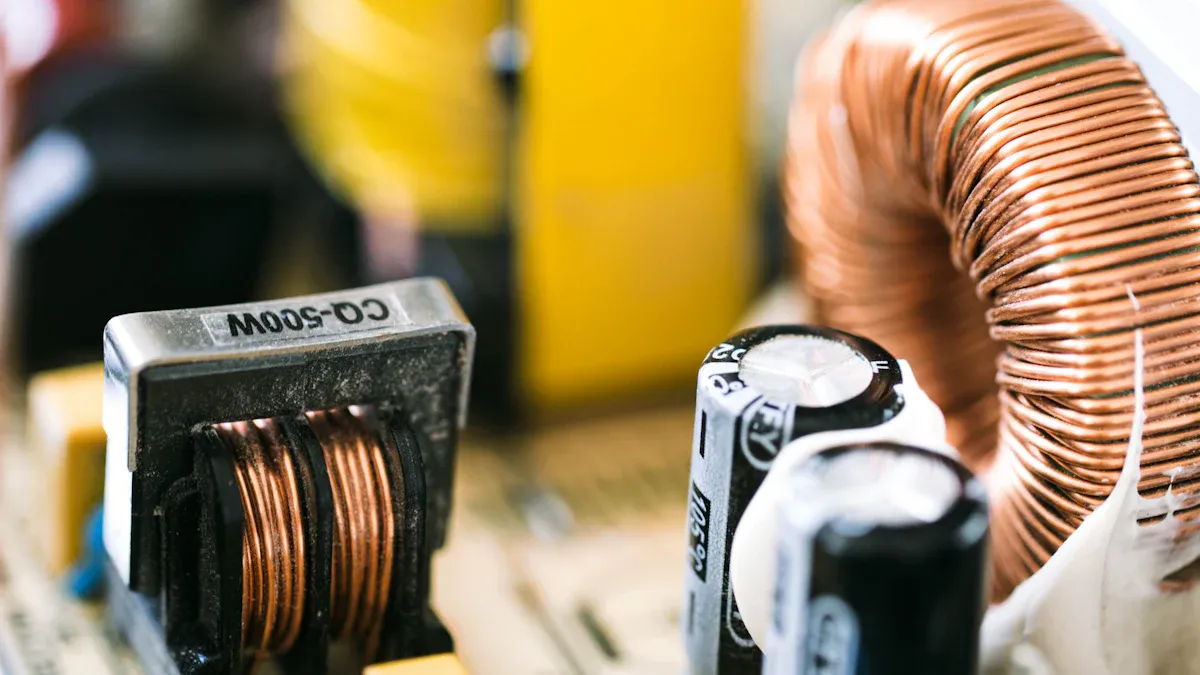

What is a DC-to-DC Converter Current?

A DC-to-DC converter current is the movement of electric charge. It goes through a device that changes one direct current voltage to another. You need this current for safe voltage control and steady power in electronics and cars.

You can find these converters in electric cars and hybrid vehicles. They help manage power. The market for these devices is growing quickly. It may be worth over $52 billion by 2032.

Key Takeaways

• Know the difference between input current and output current in DC-to-DC converters. This helps keep your device safe and working well.

• Always look at the input current rating before you use a DC-to-DC converter. Doing this stops the device from getting too hot or breaking.

• Use the formula Current (I) = Power (P) ÷ Voltage (V) to find out how much current you need. Doing the math right keeps your system safe and working well.

• Pick the right DC-to-DC converter for your device’s voltage and current needs. This makes your device work better and stay safe.

• Check the current often with tools like digital multimeters or current clamps. Good measurements help your system stay safe and not go over its limits.

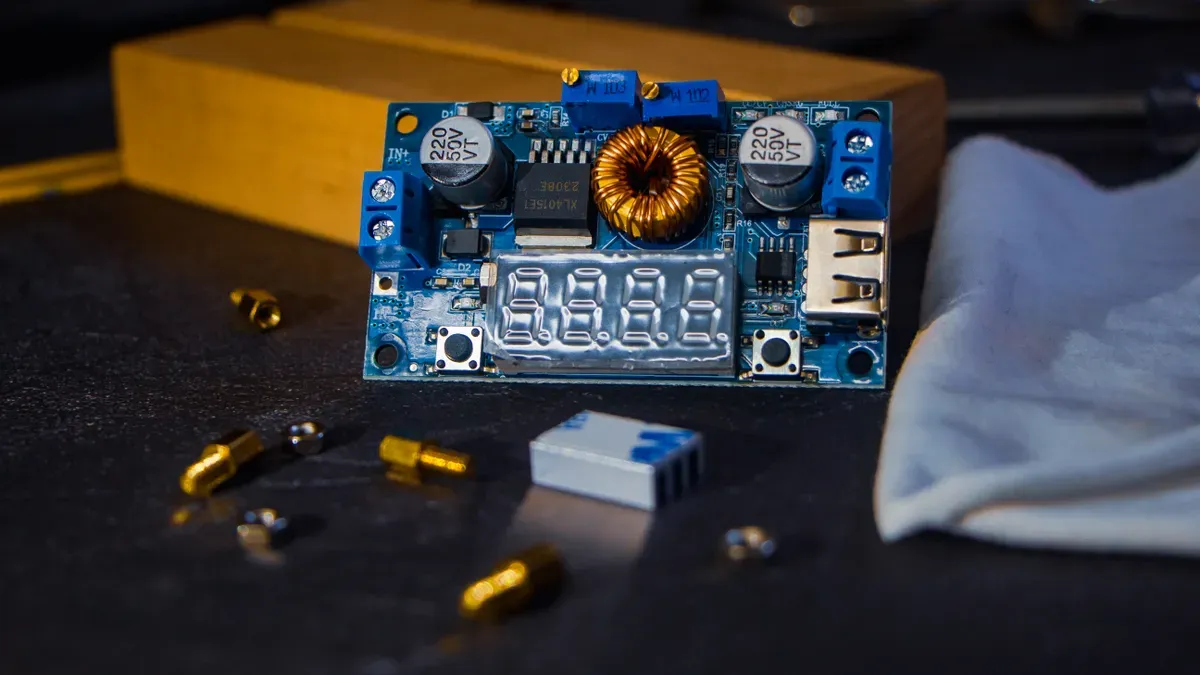

DC-to-DC Converter Current Types

DC-to-DC converters help control electrical energy. You can find them in things like phones and electric cars. These converters deal with two main types of current: input current and output current. Knowing the difference helps you make safer and better systems.

Input Current

Input current is the electric charge that goes into the DC-to-DC converter from the power source. You check this current at the converter’s input terminals. How much input current you get depends on the input voltage and how much power the load needs. In an electric car, the battery gives the input current. This current must stay safe so nothing overheats or breaks.

Tip: Always look at the input current rating before you connect a DC-to-DC converter to a power source. This keeps your device safe and makes sure it works well.

Cars need input current to work right. For example, an undervoltage lockout circuit stops voltage from dropping too low. This keeps the converter working when the battery voltage changes fast. Non-dissipative current sensing circuits let you watch input current very closely. These things make cars safer and more efficient.

Output Current

Output current is the electric charge that comes out of the DC-to-DC converter and goes to the load. You check this current at the converter’s output terminals. The output current depends on how the converter is built and what the load needs. If you use a converter for sensors in a car, the output current must fit what the sensors need.

Managing output current keeps devices safe. If the supply voltage touches the ground, smart drivers set the output current to a safe amount. This stops too much current from causing damage. Reverse polarity protection helps too. For example, M0-9 technology uses a special resistance to cut power loss if the battery is put in backward. This keeps the system working well.

Here is a table that shows common types of DC-to-DC converters and how they handle input and output current:

• Each converter type handles input and output current in its own way.

• In cars and power systems, picking the right converter helps you stay safe and reach your goals.

Measuring and Calculating Converter Current

Calculation Methods

You can figure out the current in a DC-to-DC converter with easy math. First, find out how much power your device needs. Divide the power by the voltage to get the current. For example, if your device uses 24 watts and the voltage is 12 volts, the current is 2 amps.

You can use this math for both input and output current:

Current (I) = Power (P) ÷ Voltage (V)

If you want to check efficiency, compare the input and output power. Efficiency tells you how well the converter changes voltage without wasting energy. You can use this formula:

Efficiency (%) = (Output Power ÷ Input Power) × 100

Always look at the datasheet for your converter. It shows the safe current range and helps you avoid overload.

Tip: Write your calculations down. This helps you catch mistakes and keeps your system safe.

Measurement Tools

You can measure DC-to-DC converter current with different tools. Some tools are best for labs, while others work well in the field. Here are the most accurate tools:

• In a lab, you can use digital multimeters like the Fluke 8588A or a current probe such as the LEM IN 100-S.

• For field work, you can use portable systems or a current clamp like the Hioki CT6710. Voltage probes help you check voltage and current together.

Pick the right tool for your job. Accurate measurements keep your DC-to-DC converter safe and efficient. If you use the wrong tool, you might miss important details or break your equipment.

Importance of DC-to-DC Converter Current

Role in Power Management

It is important to know about DC-to-DC converter current. This helps you build power systems that work well. When you use a DC-to-DC converter, each part gets the right voltage and current. This keeps sensitive electronics safe from sudden voltage changes. In electric cars, these converters handle big battery packs for the motor. They also give lower voltage to things like lights, radios, and screens.

• DC-to-DC converters keep voltage steady for every part.

• They help save energy by making power use better.

• You find them in laptops and smartphones, so they are used in many devices.

If you want your electronics to last longer, you must control the current. Good power management means less heat. This helps your devices stay cool and safe.

Safety and Performance

Safety and performance depend on how you control current in a DC-to-DC converter. If too much current flows, parts can get too hot and break. Smart control features let you watch current all the time and spot problems early. Isolation in these converters stops high-voltage problems from reaching low-voltage parts. This keeps your electronics and people safe.

• Steady output voltage protects devices from sudden changes.

• Good thermal management stops overheating and helps your system last longer.

• Isolation features stop electrical dangers and make things safer for everyone.

In cars, battery chargers use DC-to-DC converters to control energy when charging or braking. This makes cars safer and helps them go farther on one charge. You see the same good things in electronics, where converters help your devices work well and stay safe.

DC-to-DC Converter Current Factors

Load and Efficiency

The load changes how much current a DC-to-DC converter gives. If you add more devices, the converter sends out more current. When you use fewer devices, the current goes down. Efficient converters help save energy and keep your equipment safe. They do not waste much energy, even if the load changes. This helps electric vehicles run better and last longer.

• Efficient converters waste less energy in electric vehicles.

• High efficiency with different loads makes vehicles work better.

• Controlling power well means smoother rides and less damage to parts.

Let’s look at two common converter types:

1. A boost converter gives higher output voltage than input voltage. The output current is less than the input current.

2. A buck converter gives lower output voltage than input voltage. The output current is more than the input current.

Efficiency is very important for high-voltage converters. If you lose energy, your vehicle cannot go as far and needs more cooling.

Note: Always check how efficient your converter is. High efficiency means less heat and your devices last longer.

Voltage Levels

Voltage levels decide how much current moves through your converter. With a boost converter, you get higher output voltage and lower output current. With a buck converter, you get lower output voltage and higher output current. You need to match voltage and current to what your device needs.

The way the converter is built changes voltage and current. Always choose the right converter for your job. This keeps your system safe and working well.

Tip: Use the converter’s datasheet to pick the best voltage and current for your devices. This helps stop overload and damage.

Common Misconceptions

Input vs. Output Confusion

Lots of people get confused about input current and output current in DC-to-DC converters. Some think both currents are always equal, but that is wrong. Input current comes from the power source and goes into the converter. Output current leaves the converter and goes to your device. The converter changes the voltage, so the current changes too.

• A buck converter gives lower voltage and higher output current.

• A boost converter gives higher voltage and lower output current.

You should check both input and output current ratings. If you only check one, your equipment could get damaged. Always read the datasheet for your converter. It shows the safe limits for both currents.

Tip: Write down the input and output current values before you connect your converter. This helps you avoid mistakes and keeps your devices safe.

Safe Operating Range

Some people think a converter can handle any current if the voltage matches. That is not true. Every DC-to-DC converter has a safe range for current. If you go above this range, you can cause overheating, failure, or even fire.

You must stay within these limits. If you add more devices, check if the converter can handle the extra load. Ignoring the safe range can make your converter wear out faster.

⚠️ Note: Never guess the safe current range. Always use the datasheet and measurement tools to check your values.

You keep your devices and yourself safe when you understand these common misconceptions. You build safer and more reliable power systems.

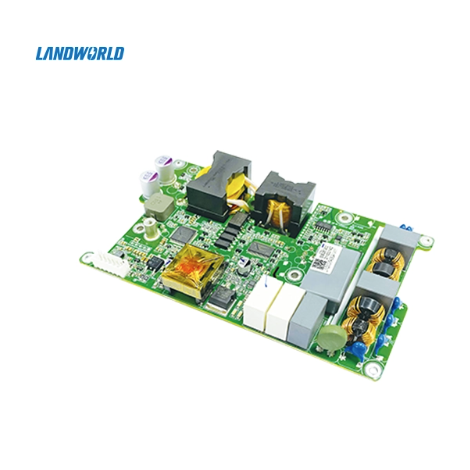

Landworld Technology DC-to-DC Converter Solutions for Electric vehicle manufacturer

High Reliability and Innovation

You want power solutions that work well and last a long time. Landworld Technology makes products that follow strict rules for industry use. Our converters have special features to give you steady power in hard places. Here is a table that shows why our converters are special:

You get high efficiency and many ways to control the converter. Our products can use different voltage levels and cooling types. We also like to create new things. Landworld Technology is a leader in on-board power supply for electric vehicles. We keep making our products better. We own all the rights to our strong and powerful designs. You can trust us to give you the latest technology.

• We use our own ideas for better safety and good results.

• Our team works hard to make each product strong and efficient.

B2B Power Supply Expertise

You need a partner who knows your business. Landworld Technology has many solutions for big electric vehicles. We are experts in both DC/DC converters and on-board chargers. The table below shows our main products and what they do:

You can trust us to give you products that fit your needs. We help you pick the best solution for your system. Our team helps you from the start to the end.

Tip: When you choose Landworld Technology, you get more than just a product. You get a partner who wants you to do well.

We at Landworld Technology promise to give you the most reliable DC-to-DC converter solutions for your business. Our company has ISO and CE certificates, and we give full technical help and custom services. Learn more about our About Us, see our Solutions, or Contact Us today to find out how we can help your business grow.

DC-to-DC converter current helps keep devices safe. It also makes them work well. If you know about input and output current, you can build strong systems. Using the right tools to measure current stops overload and damage. Good PCB design uses thick copper layers and smart features. This makes devices more efficient and reliable. DC-DC converters give steady power. They protect electronics and help keep things safe.

Tip: Try these ideas in your own projects. Your systems will be safer and work better.

Landworld Technology is a top company for on-board power supply in electric vehicles. Our certified products are made by skilled teams with advanced tools. They are reliable and show new ideas. You can learn more about us here or contact us.

FAQ

What is the difference between input and output current in a DC-to-DC converter?

You check input current where power goes into the converter. Output current is what leaves the converter and goes to your device. The numbers are not the same because the converter changes voltage and current to fit what your device needs.

How do you know if your converter current is too high?

Look at the datasheet to find the highest current allowed. If your current is higher than this, your converter can get too hot or stop working. Always use a meter to check current before you add new things.

Why does efficiency matter for DC-to-DC converter current?

If a converter is efficient, less energy turns into heat. This keeps your devices cooler and helps them last longer. Efficient converters also save battery power, which is important for electric cars and things you carry.

Can you use any DC-to-DC converter for any device?

No, you need to match the converter’s voltage and current to your device. If you use the wrong converter, your equipment can break or become unsafe.

What tools help you measure DC-to-DC converter current?

You can use a digital multimeter, a current probe, or a current clamp. These tools help you see if your converter is safe and works for your device.
