In the rapidly evolving world of electric vehicles (EVs), efficient and reliable charging systems are critical to both performance and user experience. Among these systems, On-board Chargers (OBCs) play a pivotal role by converting alternating current (AC) from external sources into direct current (DC) suitable for charging EV batteries. As EV adoption accelerates globally, the need for faster, more powerful, and versatile charging solutions has become increasingly important.
One such solution gaining attention is the 13kW OBC. This high-power onboard charger is designed to provide faster energy transfer, higher efficiency, and robust performance across a range of EV platforms. Its design and features address several key challenges in EV charging, such as varying battery voltages, thermal management, and digital control integration.
This article explores the compatibility of the 13kW OBC across various types of electric vehicles, examining its technical features, applications, and integration considerations. By understanding how this charger operates and adapts to different vehicles, manufacturers, fleet operators, and EV enthusiasts can make informed decisions about deployment, ensuring optimal performance and reliability.
A 13kW OBC represents a significant advancement in onboard charging technology. Unlike traditional lower-capacity chargers, this unit is capable of delivering high power without compromising efficiency, safety, or system reliability. Its design is optimized to balance electrical performance, thermal management, and integration flexibility.
The 13kW OBC offers a range of specifications tailored for modern EV applications:
⦁ Power Output: 13kW (single-phase input option of 6.6kW), allowing faster charging cycles without overloading the vehicle's electrical system.
⦁ Input Voltage Range: 85–265 VAC, supporting diverse global electrical standards. This wide input range ensures that the charger can function reliably in residential, commercial, and industrial charging infrastructures.
⦁ Output Voltage Options: 380 / 540 / 640 VDC, enabling compatibility with various battery pack configurations.
⦁Auxiliary Power: 9–32 VDC for supporting onboard vehicle systems during charging.
⦁ Cooling: Liquid-cooled system ensures stable operation under continuous high-load conditions, preventing overheating and maintaining optimal efficiency.
⦁ Efficiency: ≥94% typical, which minimizes energy losses and enhances the overall energy utilization of the EV.
⦁ Protection: IP67-rated enclosure, overvoltage, overcurrent, short-circuit, and temperature protections to safeguard both the charger and the vehicle.
The digital control system embedded in the 13kW OBC allows precise regulation of voltage and current, ensuring that the EV battery receives the exact charge profile required. This intelligent system also supports online diagnostics and remote software updates, reducing maintenance needs and improving long-term reliability.
While 13kW OBCs are engineered to be versatile, several technical factors influence their compatibility across different EV platforms. A clear understanding of these factors is essential for ensuring safe and efficient integration.
The input voltage range of 85–265 VAC allows the 13kW OBC to operate in a wide spectrum of power conditions. For instance, residential charging in regions with lower voltages or industrial grids with higher fluctuations can be accommodated without compromising performance. Maintaining stable input voltage is critical to avoid thermal stress and ensure consistent output current, which directly affects battery longevity.
Compatibility with the vehicle’s battery pack is primarily determined by output voltage alignment. The 380V, 540V, and 640V DC output options enable the 13kW OBC to charge batteries of varying capacities and chemistries efficiently. Accurate voltage matching is crucial to avoid undercharging or overvoltage conditions, which can impact battery health and overall system performance.
High-power chargers inherently generate significant heat. Liquid cooling, the preferred solution for 13kW OBCs, provides a stable thermal environment, ensuring components operate within safe temperature limits. Proper thermal management also improves conversion efficiency and extends the life of the charger and associated electronic components.
Effective integration requires the 13kW OBC to communicate with the EV’s battery management system (BMS) and other control units. Digital protocols allow for real-time adjustments to charging current, voltage, and temperature thresholds. This integration ensures optimal charging performance and safeguards both the charger and the vehicle under varying operational conditions.
The 13kW OBC is designed to provide broad compatibility across multiple types of electric vehicles. Its flexibility in handling various voltage ranges and cooling requirements allows for seamless integration with diverse EV platforms.
EV Type | Typical Voltage Range | Charging Considerations | Compatibility Notes |
Passenger Cars | 300–400 V | Short to medium daily driving distances, moderate charging speeds | Compatible with standard 380V output; ensures fast and reliable daily charging |
Light Commercial Vehicles | 400–540 V | High daily usage, logistics and delivery operations | High-efficiency output matches 540V battery packs; supports continuous charging cycles |
Specialty Vehicles | 540–640 V | Industrial machinery, construction EVs, forklifts | Supports high-voltage systems; liquid cooling ensures reliable operation under heavy load |
Future EV Platforms | 300–640 V | Emerging EV architectures and new battery chemistries | Flexible voltage output accommodates a wide range of upcoming EV designs |
The table above illustrates how the 13kW OBC can adapt to various EV platforms through its multi-voltage outputs, intelligent digital control, and advanced thermal management.
With a 13kW output, the OBC provides faster energy transfer compared to lower-powered chargers. This capability is particularly beneficial for fleet operations or scenarios requiring minimal downtime, allowing vehicles to recharge efficiently without affecting operational schedules.
The typical efficiency of ≥94% ensures minimal energy loss during AC-to-DC conversion. This translates to lower electricity consumption, reduced operational costs, and less heat generation, contributing to a safer and more sustainable EV charging solution.
Modern 13kW OBCs incorporate sophisticated digital control systems, enabling real-time monitoring and adaptive voltage/current regulation. These features help maintain consistent charging profiles, prevent overcharging, and provide data for system diagnostics and optimization.
The IP67-rated enclosure and comprehensive protection mechanisms ensure that the 13kW OBC operates reliably in harsh environments, including extreme temperatures, moisture exposure, and dusty conditions. Overvoltage, overcurrent, short-circuit, and temperature protections further safeguard both the charger and the vehicle, ensuring long-term reliability.
By supporting multiple voltage ranges and integrating easily with various EV battery systems, the 13kW OBC offers a scalable solution for current and future electric vehicle designs. Its flexible architecture allows it to be used across different platforms without requiring significant modifications.

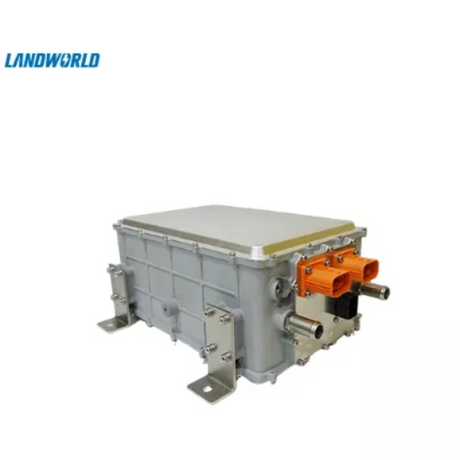

With a compact modular design and dimensions of approximately 370 × 252 × 158 mm, the 13kW OBC can be integrated into various EV platforms, including passenger vehicles, electric buses, and commercial vehicles. Its relatively lightweight structure helps reduce installation complexity while improving overall vehicle space utilization.
The 13kW OBC must be compatible with the vehicle’s high-voltage architecture, including 400V or 800V battery systems. Proper matching of connectors, communication interfaces, auxiliary power supply, and insulation requirements is essential to ensure stable and safe charging performance.
Since 13kW onboard chargers typically operate with liquid cooling technology, seamless integration with the vehicle’s thermal management system is critical. Efficient coolant circulation and thermal control help maintain stable operating temperatures, improve charging efficiency, and enhance long-term reliability under high-power charging conditions.
Modern 13kW OBCs require reliable communication with the Battery Management System (BMS) through CAN bus or other automotive communication protocols. This enables intelligent charging control, real-time status monitoring, fault diagnostics, and adaptive charging strategies for different battery conditions.
For EV manufacturers, integrating the OBC with other power electronics systems such as DC/DC converters and power distribution units can simplify vehicle architecture and reduce wiring complexity. Integrated power solutions also contribute to lower system weight, improved energy efficiency, and easier vehicle assembly.
The 13kW OBC exemplifies trends in the evolution of onboard charging technology. Its features align with current and emerging requirements in the EV industry:
⦁ Smart Charging Integration: Advanced digital control allows the charger to interface with vehicle telematics, energy management systems, and networked charging infrastructure.
⦁ Multi-Voltage Platforms: 13kW OBCs support a broad range of battery chemistries and voltage configurations, enhancing adaptability for future EV models.
⦁ Digital Upgradability: Remote software updates ensure continued efficiency, performance optimization, and the addition of new functionalities.
⦁ Energy Ecosystem Participation: 13kW OBCs are increasingly capable of supporting V2L (Vehicle-to-Load) and V2V (Vehicle-to-Vehicle) energy transfer, contributing to a more flexible and resilient energy ecosystem.
⦁ Higher Power Density Designs: Ongoing advancements focus on reducing size and weight while increasing power output, making integration simpler for diverse EV architectures.
These trends indicate that 13kW OBCs will remain central to next-generation EVs, supporting both performance and smart energy management objectives.
The 13kW OBC is a versatile, high-performance onboard charger designed to deliver broad compatibility across a wide range of electric vehicles. With advanced digital control, multi-voltage support, high efficiency, and robust thermal management, it ensures reliable and safe charging for passenger, commercial, and specialty EVs alike. Its scalable design and comprehensive protection mechanisms make it a forward-looking solution for both current and next-generation electric vehicle platforms.
To fully leverage the capabilities of a 13kW OBC, proper integration and alignment with the vehicle’s cooling systems are essential, ensuring optimal performance under diverse operational conditions. For those seeking expert guidance, detailed specifications, or tailored solutions, we recommend reaching out to Landworld Technology Co., Ltd. Their team can provide professional advice, technical support, and assistance in selecting or implementing the right onboard charging solution for any electric vehicle application.
By consulting with Landworld, manufacturers and fleet operators can maximize the efficiency, safety, and reliability of their EV charging systems, ensuring enhanced vehicle performance and long-term operational benefits. Engaging with a trusted technology partner helps unlock the full potential of advanced 13kW OBC solutions.
Q1: Can a 13kW OBC work with all voltage types of electric vehicles?
A1: Yes, modern 13kW OBCs support multiple output voltage ranges (380V, 540V, 640V), ensuring compatibility with a wide variety of EV battery systems.
Q2: What features make a 13kW OBC highly compatible with different EVs?
A2: Key features include liquid cooling, digital control, IP67 protection, and flexible voltage output, which collectively support diverse EV architectures.
Q3: Are special installation procedures required for 13kW OBCs?
A3: Integration requires aligning electrical interfaces and ensuring proper thermal management, which guarantees safe and optimal performance.
Q4: How does a 13kW OBC improve charging efficiency?
A4: With efficiency levels of ≥94%, it minimizes energy loss and reduces charging time, enhancing overall EV energy utilization.
Q5: Will 13kW OBCs be relevant for future EV platforms?
A5: Absolutely. Their multi-voltage support, digital upgrades, and smart system integration make them suitable for next-generation electric vehicles.
