An undersized EV DC/DC converter can cause voltage drops, overheating, and unexpected electrical shutdowns. An oversized unit, however, may increase costs and waste valuable installation space. The converter transfers energy from the high-voltage traction battery to the vehicle’s low-voltage electrical system. Proper EV DC/DC converter selection requires balancing continuous power, peak demand, voltage compatibility, and operating conditions. So, how do you determine the right converter rating? This guide explains how to calculate low-voltage loads, assess current requirements, and account for battery charging. You will also learn how to evaluate efficiency, thermal performance, and transient response before making your final selection.

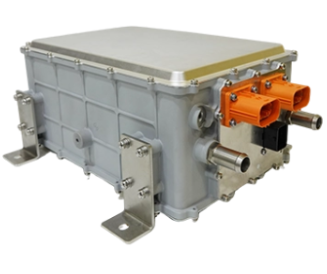

An EV DC/DC converter transfers energy from the high-voltage traction battery to the low-voltage electrical system. Depending on vehicle architecture, this system may use a 12V, 24V, or 48V bus. It supplies equipment such as electronic control units, lighting, sensors, pumps, fans, and infotainment systems.
Start by creating a complete load inventory. Record each component's rated power, operating current, duty cycle, and startup behavior. Also identify which devices operate simultaneously during normal driving or demanding conditions.
Separate loads into three practical groups:
Continuous loads: Control units, sensors, and other equipment operating throughout driving.
Intermittent loads: Cooling fans, pumps, actuators, and accessories activated when needed.
Peak loads: Devices that temporarily draw high current during startup or sudden operation.
This classification helps prevent underestimating actual power demand. It also avoids adding every component's maximum rating when those loads cannot occur simultaneously.
Calculate continuous demand by adding the power consumed by simultaneously operating components. Then estimate peak demand using realistic combinations of active loads. Motor startup, actuator movement, and simultaneous accessory activation can increase current temporarily.
Consider this illustrative load calculation:
Load category | Estimated power | Operating condition |
Control units and sensors | 100 W | Continuous |
Lighting and infotainment | 250 W | Variable |
Pumps and cooling fans | 350 W | Intermittent |
Additional transient demand | 200 W | Short duration |
In this example, the combined continuous load reaches 700 W. If another 200 W is required temporarily, the system may demand 900 W. These figures are illustrative and require verification against actual component specifications. The final calculation must also include low-voltage battery charging when applicable. Otherwise, the selected converter may support active electronics but struggle to recharge the battery.
The converter must match the vehicle's low-voltage architecture. However, nominal voltage alone does not define the complete requirement. Engineers must also establish acceptable output-voltage limits, ripple, transient deviation, and charging voltage.
For example, a 12V electrical system may require a charging voltage above its nominal bus voltage. The correct value depends on battery chemistry, battery-management requirements, and vehicle specifications.
Before comparing converters, confirm the following:
Nominal output voltage and permitted operating range.
Maximum continuous output current.
Short-duration peak current and permitted duration.
Output ripple and transient regulation requirements.
Compatibility with the low-voltage battery and connected electronics.
These specifications help determine whether the converter can maintain a stable supply under changing loads.
Output current depends on the power delivered and the operating voltage. For a given power requirement, a lower output voltage requires more current, while a higher voltage requires less current.
Suppose the system requires 900 W at a nominal output voltage of 12 V. The calculated current is 75 A. This value represents the required output under the stated conditions, not a complete component selection.
At 24 V, delivering the same 900 W requires 37.5 A. A higher bus voltage therefore reduces current for an equivalent power requirement. This affects cable sizing, connector selection, fuse ratings, and distribution losses.
The selected converter must meet its current requirement across the specified output-voltage range. Engineers should also verify the current ratings of associated wiring and protection devices.
Real vehicle loads vary over time. Production tolerances, future accessories, environmental conditions, and uncertain operating patterns may increase demand. A suitable design margin helps accommodate these variations.
However, a universal oversizing percentage does not suit every EV. Instead, calculate the margin from measured load profiles and documented engineering requirements.
Check continuous and peak ratings separately. A converter capable of delivering high power for several seconds may not sustain that output continuously. Conversely, excessive capacity can increase cost, weight, and packaging demands. The goal is to select a rating that meets verified requirements without unnecessary oversizing.
An EV's traction battery voltage changes during operation. State of charge, charging conditions, temperature, and power demand can all affect the available input voltage. Therefore, EV DC/DC converter selection must consider the battery's minimum and maximum operating voltages. A converter rated only for nominal battery voltage may fail to regulate its output at operating extremes.
Check the converter's specified input range against the vehicle's complete battery-voltage envelope. Confirm that it can maintain the required low-voltage output throughout this range. The specification should also identify any conditions that reduce available output power. Some converters cannot deliver their maximum rated output across every input voltage. For a product-level reference, Landworld's 6 kW DC/DC converter supports a 400–750 VDC input range and a 27.5 VDC low-voltage output for 24 V vehicle electrical systems.
Input voltage can change during startup, acceleration, regenerative braking, and transitions between vehicle operating states. The converter must tolerate the disturbances expected within the electrical architecture. Review undervoltage and overvoltage thresholds, startup behavior, shutdown conditions, and recovery performance. These details help determine whether the converter remains stable during normal transitions.
Also consider how the vehicle controls high-voltage power distribution. The traction battery may impose operating limits, or the vehicle controller may disconnect the high-voltage supply under certain conditions. The design must account for these states rather than assuming continuous power availability. System-level testing can reveal problems that static voltage calculations miss.

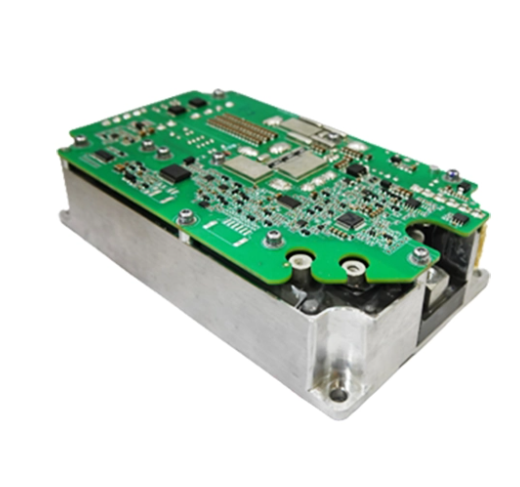

Every converter generates heat during power conversion. Its losses depend on operating power, efficiency, electrical design, and environmental conditions. Excessive heat can trigger thermal derating or shorten component life. Review the converter's thermal performance at typical and maximum continuous loads. Consider ambient temperature, enclosure design, mounting position, airflow, and available coolant.
Cooling requirements vary by application. Some designs use natural convection, while others rely on forced air or liquid cooling. The correct choice depends on power density and installation conditions. Most importantly, check the manufacturer's derating curve. A converter rated for a certain output under reference conditions may support less power at higher temperatures. The selected unit must meet the required load after applicable derating.
Peak efficiency does not tell the whole story. An EV DC/DC converter may operate at different loads throughout a driving cycle. Its efficiency at typical demand can therefore matter as much as its maximum efficiency.
Efficiency describes how much input energy becomes useful output power. The remaining energy is lost during conversion, mainly as heat. For example, a converter delivering 900 W at 90% efficiency draws approximately 1,000 W of input power. Its conversion losses are therefore about 100 W. These figures are illustrative and are not specifications for a particular product.
Compare efficiency at low, typical, and high loads. Also check standby consumption during parking or low-power operation. Together, these measurements help assess energy use, heat generation, and cooling requirements.
The converter often supports both active vehicle loads and low-voltage battery charging. Its rating must accommodate their combined demand when simultaneous operation is possible. Start by identifying the battery chemistry and charging strategy. Confirm the required charging voltage, maximum charging current, temperature limits, and battery-management requirements.
Next, estimate the charging demand under realistic conditions. A battery may accept different charging currents depending on its state of charge and temperature. Therefore, using its maximum theoretical charging current in every operating scenario may overestimate demand. However, ignoring charging demand can produce an undersized design. The calculation should cover active loads and the charging power required by the vehicle's intended operating strategy.
Some electrical components draw significantly more current during startup than during steady operation. Pumps, fans, actuators, and capacitive loads can create short but demanding transients. Review the converter's transient response, peak-current capability, voltage deviation, and recovery time. These parameters indicate how well it handles sudden load changes.
Consider a situation where cooling fans start while lighting and control systems are already operating. The resulting current surge may cause output voltage to dip. Sensitive electronics could reset if the voltage falls outside their permitted range. Test realistic combinations of switching events. Do not rely exclusively on steady-state power calculations. Also confirm that any specified overload capability lasts long enough for the intended operating event.
Protection functions help prevent damage during abnormal operating conditions. However, they cannot compensate for an incorrect power rating or incompatible electrical specifications. Check the converter's response to overcurrent, short circuits, overtemperature, input undervoltage, and output overvoltage. Confirm its shutdown and restart behavior, including any required recovery sequence.
Isolation requirements and insulation coordination must also match the vehicle's high-voltage architecture. Review applicable automotive electrical safety and electromagnetic compatibility requirements. Finally, confirm compatibility with vehicle diagnostics and control systems. Fault reporting and predictable shutdown behavior are especially important when low-voltage power supports safety-related equipment.
Two converters with similar nominal power ratings may perform differently under actual operating conditions. Their input ranges, current limits, thermal behavior, and transient performance can vary considerably.
Use a consistent comparison process rather than selecting by wattage alone. Review these specifications together:
Continuous output power and peak-current capability.
Full input-voltage range and output regulation.
Efficiency curves and thermal derating.
Cooling method, dimensions, mounting, and connections.
Protection functions and fault-response behavior.
Environmental durability, vibration resistance, and relevant automotive qualification requirements.
Also confirm whether the available installation space supports the required cooling and electrical connections. A converter that meets the electrical calculation may still be unsuitable for the vehicle's packaging constraints.
Before finalizing the design, document the calculations and verify the selected converter against real operating conditions.
1. Inventory all low-voltage loads and their operating patterns.
2. Calculate continuous demand and realistic simultaneous peak demand.
3. Include required battery-charging power and justified design margins.
4. Verify output voltage, current, and the full high-voltage input range.
5. Check thermal derating and efficiency at representative loads.
6. Confirm protection, fault handling, and relevant safety requirements.
7. Test startup, sustained maximum load, hot conditions, and load transitions.
Testing should use the vehicle's actual operating limits and acceptance criteria. Record output voltage, current, temperature, and fault behavior during representative scenarios. Where necessary, use a suitable test bench before vehicle integration. Simulation can help explore operating extremes, but it should support rather than replace required hardware validation.
Proper EV DC/DC converter selection starts with actual load demand, output current, and input voltage. Continuous power, peak demand, battery charging, and thermal limits must work together. Choose a converter rating that meets verified load, voltage, thermal, transient, and system-margin requirements without unnecessary oversizing. Validate its specifications through vehicle-level testing before finalizing the design. If you are sizing a DC/DC converter for an EV platform, Landworld can help evaluate power level, input/output voltage, cooling, packaging, and integration requirements against the vehicle's actual low-voltage load profile.
A: List all low-voltage loads, identify simultaneous operating demand, and account for battery charging. Select a converter that supports continuous demand, peak loads, and justified design margins.
A: EV DC DC converter selection must consider input voltage range, output current, thermal derating, efficiency, and transient response. A suitable power rating alone cannot guarantee stable operation.
A: Divide the required output power by the nominal output voltage. For example, a 900 W load at 12 V requires 75 A, before considering additional design margins.
A: EV DC DC converter selection must account for both active electrical loads and low-voltage battery charging. Check the battery's charging limits and expected simultaneous demand to avoid insufficient capacity.
A: An undersized converter may overheat, experience voltage drops, or trigger protective shutdowns. Check peak demand, continuous current, and thermal derating to prevent these problems.
