Choosing between a 6.6 kW and an 11 kW on-board charger (OBC) is a vehicle-system decision, not simply a question of which charger is faster. The correct choice depends on the battery capacity, required AC charging time, target-market grid infrastructure, AC input configuration, thermal architecture, packaging space, vehicle duty cycle, and overall system cost.
A 6.6 kW OBC can be a strong fit for platforms that prioritize cost, compact packaging, and compatibility with single-phase AC charging. An 11 kW OBC can reduce AC charging time when the vehicle and target infrastructure support the required input power, and it is commonly used in three-phase charging architectures in markets where this infrastructure is available.
For EV OEMs and vehicle integrators, the goal is not to choose the highest number.It is to select an appropriate OBC power rating that meets the vehicle program's charging and operating requirements with sufficient engineering margin.
A 6.6 kW or 11 kW on-board charger should be selected according to the complete vehicle architecture, not only charging speed.
A 6.6 kW OBC is often suitable where single-phase AC charging, longer charging windows, lower cost, or simpler packaging are important.
An 11 kW OBC can significantly reduce AC charging time when compatible three-phase infrastructure and vehicle-side support are available.
Battery capacity, duty cycle, cooling, package space, AC input, target market, and system cost should all be evaluated before choosing between 6.6 kW and 11 kW.
The higher-power option is not automatically the better choice if the target charging environment cannot regularly supply the required AC power.
Comparison Area | 6.6 kW OBC | 11 kW OBC |
|---|---|---|
Rated AC charging power | 6.6 kW | 11 kW |
Typical AC architecture | Commonly single-phase | Commonly three-phase in 400 V-class AC markets |
Charging-time potential | Suitable for longer AC charging windows | Shorter AC charging time when full input power is available |
Thermal demand | Generally lower total heat load | Higher power may require more thermal-management capability |
Packaging and cost | Can support more compact and cost-sensitive designs | May require greater power density, cooling, and system integration |
Typical selection driver | Cost, infrastructure compatibility, sufficient overnight charging | Faster turnaround, larger energy recovery, compatible three-phase infrastructure |
An OBC converts AC input from compatible charging equipment into controlled DC output for the vehicle's high-voltage battery. Both 6.6 kW and 11 kW OBCs perform this same core function.
The difference is primarily the amount of power the OBC is designed to convert under specified operating conditions. A 6.6 kW OBC is limited to approximately its rated capability even if the connected EVSE can supply more. Likewise, an 11 kW OBC can only use its full capability when the upstream AC source, charging equipment, cable, battery, and vehicle controls all support that power level.
OBC rated power defines the vehicle-side AC charging capability, but the actual charging rate is determined by the most restrictive limit in the entire charging chain.
6.6 kW OBCs are commonly designed around single-phase AC input, while 11 kW OBCs are commonly configured for three-phase AC operation in markets using approximately 400 V-class three-phase charging infrastructure.
However, phase configuration should always be confirmed from the specific product design rather than assumed only from nominal OBC power. The RFQ or vehicle specification should clearly define supported AC voltage, frequency, phase configuration, and maximum input current.
Input Parameter | Why It Matters |
|---|---|
AC voltage range | Determines market compatibility and available input power |
Single-/three-phase support | Determines how the OBC interacts with target-market charging infrastructure |
Maximum AC current | Limits actual charging power under each supported input condition |
Frequency | Must match target regional grid requirements |
The basic charging-time relationship can be estimated by dividing the energy that needs to be recovered by the effective charging power.
Approximate charging time = Energy required ÷ Effective charging power
Under ideal conditions, an 11 kW OBC has approximately 67% more rated charging power than a 6.6 kW OBC. Looking at charging time from the opposite direction, an ideal 11 kW charging session takes about 40% less time than a 6.6 kW session for the same amount of energy.
Energy to Recover | 6.6 kW OBC | 11 kW OBC | Ideal Time Saved |
|---|---|---|---|
20 kWh | ≈3.0 h | ≈1.8 h | ≈1.2 h |
40 kWh | ≈6.1 h | ≈3.6 h | ≈2.5 h |
60 kWh | ≈9.1 h | ≈5.5 h | ≈3.6 h |
80 kWh | ≈12.1 h | ≈7.3 h | ≈4.8 h |
These are ideal energy ÷ rated-power calculations. Real charging time can be longer because of OBC efficiency, battery temperature, state of charge, BMS limits, auxiliary loads, AC supply conditions, and thermal derating.
An 11 kW OBC only creates a charging-time advantage when the rest of the system can support it. If the available EVSE supplies only 6.6 kW, an 11 kW OBC cannot convert 11 kW because that power is not available at the input.
The same applies when the BMS requests less charging current because of high state of charge, low or high battery temperature, cell-balancing requirements, or another vehicle control strategy.
The larger OBC should therefore not be justified only by nominal charging power. Vehicle engineers need to evaluate how often the vehicle will actually operate in conditions where 11 kW is available and useful.
It is tempting to assign 6.6 kW OBCs to smaller batteries and 11 kW OBCs to larger batteries, but this is too simplistic. Battery capacity is only one part of the selection process.
A larger battery does create more potential energy-recovery demand, but the vehicle's available charging window may be more important. For example, a commercial vehicle with a moderate-size battery and a short turnaround window may benefit more from 11 kW AC charging than a larger passenger vehicle that remains parked overnight.
Vehicle Use Case | 6.6 kW May Be Suitable When... | 11 kW May Be Valuable When... |
|---|---|---|
Passenger EV | Long overnight charging window is available | Faster AC recovery is an important market requirement |
Fleet vehicle | Vehicle remains parked for long periods between shifts | Shorter turnaround increases vehicle utilization |
Commercial EV | Daily energy recovery is relatively limited | More energy must be recovered during scheduled dwell time |
Specialized/off-road EV | Cost, space, or available infrastructure favors lower power | Operational uptime justifies higher AC charging power |
Market infrastructure matters, but it should not be used as a rigid rule such as "North America equals 6.6 kW" and "Europe equals 11 kW." Charging infrastructure, connector architecture, building electrical systems, vehicle segment, and regulatory requirements vary within each region.
Instead, define the actual AC charging conditions expected in the target markets and then select an OBC that can use those conditions efficiently.
Useful market inputs include:
Available AC voltage and frequency
Single-phase and three-phase availability
Maximum expected AC current
Charging connector and communication architecture
Fleet/depot charging environment if applicable
Required homologation and regional charging standards
The useful charging power is determined by the weakest effective link between the grid, EVSE, cable, vehicle charging interface, OBC, BMS, battery, and thermal system.
This is particularly important for 11 kW OBC selection. A vehicle may technically include an 11 kW OBC but still operate below that level in markets or charging locations where three-phase AC power is not available.
Increasing OBC power can shorten charging time, but it also increases the amount of electrical power that must be converted and the amount of heat the system must manage.
An 11 kW design therefore needs to be evaluated together with:
Power-conversion efficiency
Power density
Coolant or airflow availability
Continuous charging duration
Ambient temperature
Mechanical package space
Thermal derating requirements
For projects where packaging is limited, integrated solutions may offer advantages. Landworld provides information on 11 kW OBC + 3 kW DC/DC integrated systems compared with separate units.
OBC efficiency should not be compared only by rated power. An 11 kW OBC is not automatically more efficient than a 6.6 kW OBC, and a 6.6 kW OBC is not automatically more efficient simply because it operates closer to its nameplate rating.
Efficiency depends on the actual operating point, including AC input voltage, battery voltage, output power, topology, semiconductor technology, temperature, and cooling conditions.
For this reason, engineering teams should compare efficiency maps rather than one peak-efficiency value. Landworld discusses these factors in more detail in its article on how OBC efficiency affects EV energy consumption.
Do not choose 6.6 kW or 11 kW based on the assumption that one power class is inherently more efficient. Compare the actual product performance under the vehicle's expected operating conditions.
A higher-power OBC may involve greater semiconductor capacity, magnetics, cooling, packaging, connector, and validation requirements. However, the true vehicle-level cost difference depends on the specific architecture and supplier design rather than a simple rule that "11 kW always costs much more."
The correct comparison should include:
OBC unit cost
Cooling-system impact
Mechanical packaging
HV/LV connectors and wiring
Vehicle software integration
Validation requirements
Potential vehicle-utilization benefit from shorter charging time
For a commercial or fleet vehicle, reducing AC charging time may improve fleet utilization or make a specific operating schedule possible. In this case, the additional OBC cost may create measurable vehicle-level value.
For another platform with a long overnight charging window, the same 11 kW capability may provide little operational benefit compared with a 6.6 kW design. This is why OBC cost should always be evaluated against the vehicle's real duty cycle.
The target vehicle primarily uses single-phase AC charging.
The required daily energy recovery can comfortably be completed within the available charging window.
Lower cost, smaller package size, or simpler thermal integration has high priority.
The target charging infrastructure would rarely provide more than approximately 6–7 kW of usable AC power.
Vehicle duty cycle does not justify faster AC charging.

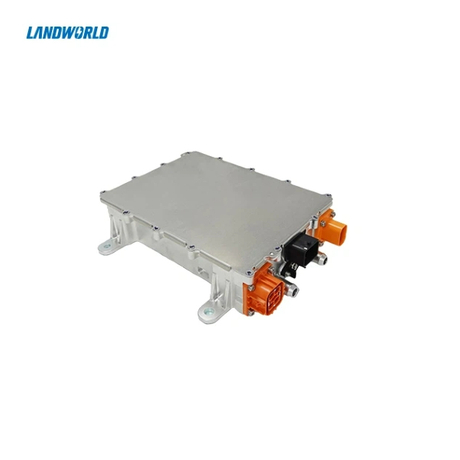

Landworld's 6.6 kW bidirectional OBC and 3 kW DC/DC solution is one example of a platform designed for applications that require lower-power AC charging together with integrated power-conversion capability.
The target markets provide compatible three-phase AC charging infrastructure.
The vehicle must recover more battery energy within a shorter charging window.
Fleet or commercial vehicle utilization improves when AC charging time is reduced.
The vehicle thermal and packaging architecture can support the higher-power design.
The additional charging capability provides enough customer or operational value to justify the system-level cost.
For more detail on the platform itself, see Landworld's explanation of what an 11 kW OBC is and its guide to 11 kW OBC charging speed.
Landworld Technology develops EV power electronics for passenger vehicles, commercial vehicles, off-road equipment, forklifts, marine EVs, and other specialized electric platforms.
Its current on-board charger portfolio includes multiple OBC power levels and system configurations, including 6.6 kW and 11 kW solutions.
Landworld operates under an IATF 16949-certified automotive quality management system. For projects with functional safety requirements, ISO 26262-related development and validation can be addressed according to the specific product and project scope. Landworld also holds full intellectual property rights for its core power-electronics products.
For OEM projects, OBC selection can be evaluated together with battery voltage, AC input, CAN communication, cooling, package size, connector requirements, target market, and application-specific operating conditions.
Depending on the vehicle architecture, a stand-alone OBC may not be the only option. Landworld also develops integrated OBC/DC-DC systems that can reduce the number of separate power modules and support more compact vehicle power architectures.
Landworld supports vehicle-specific evaluation and customization rather than applying one OBC configuration to every program. You can review the company's on-board charger solutions, learn more about Landworld, or contact the engineering team with your vehicle requirements.
For passenger-car applications, you can also review Landworld's electric passenger car solutions.
The choice between a 6.6 kW and an 11 kW OBC should not be based only on region, household power, or nominal charging speed. A 6.6 kW OBC can provide an efficient and cost-effective solution for vehicle programs with moderate AC charging requirements, while an 11 kW OBC can significantly reduce charging time when compatible infrastructure and vehicle architecture are available.
For OEMs and vehicle integrators, the most important comparison includes battery capacity, required energy recovery, charging window, AC input, target markets, thermal system, packaging, communication, cost, and vehicle duty cycle.
If you are defining OBC specifications for a new EV platform, compare Landworld's 6.6 kW and 11 kW on-board charger solutions or contact Landworld with your battery voltage, AC input, charging-power target, cooling conditions, and vehicle application.
The main difference is rated AC charging power. An 11 kW OBC can convert more AC power than a 6.6 kW OBC when the charging infrastructure, battery, and vehicle system support it. This can reduce charging time, but it may also increase thermal, packaging, and system-integration requirements.
11 kW OBCs are commonly configured for three-phase AC charging in markets using approximately 400 V-class three-phase infrastructure. However, the exact supported input architecture depends on the specific OBC design, so voltage, current, frequency, and phase requirements should always be confirmed from the technical specification.
Under ideal conditions, 11 kW provides about 67% more charging power than 6.6 kW. For the same amount of energy, this reduces ideal charging time by about 40%. For example, recovering 60 kWh takes approximately 9.1 hours at 6.6 kW and 5.5 hours at 11 kW before accounting for real-world losses and limits.
No. Actual charging power may be lower because of EVSE output, AC supply limits, battery state of charge, battery temperature, BMS current limits, thermal derating, or other vehicle-control conditions.
Not necessarily. Efficiency depends on the specific OBC design and operating point. Compare efficiency across representative AC input, battery voltage, load, and temperature conditions rather than assuming one power rating is inherently more efficient.
It depends on the vehicle duty cycle. If the vehicle has a long dwell period and moderate daily energy use, 6.6 kW may be sufficient. If shorter turnaround time or higher daily energy recovery improves vehicle utilization, 11 kW may provide greater operational value when compatible charging infrastructure is available.
Landworld offers both 6.6 kW and 11 kW OBC solutions and can evaluate battery voltage, AC input, cooling, communication, packaging, target market, vehicle application, and charging-time requirements before recommending a suitable configuration.
